2834520

Obsolete

Phoenix Contact

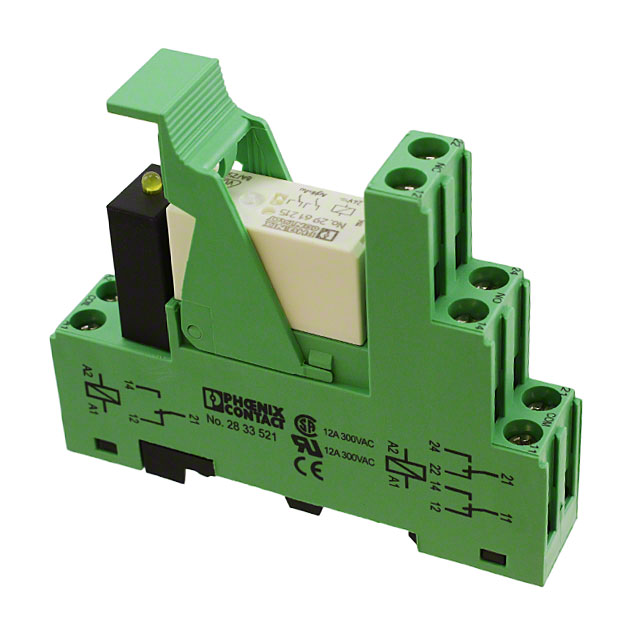

RELAY GEN PURPOSE DPDT 8A 24V

Deep-Dive with AI

Search across all available documentation for this part.

2834520

Obsolete

Phoenix Contact

RELAY GEN PURPOSE DPDT 8A 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2834520

Coil Current	19 mA
Coil Resistance	1263 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	8 A
Features	Socket Included, Diode, Lighted Indicator
Mounting Type	DIN Rail
Operate Time	8 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Screw Terminal

28345 Series

Part	Coil Voltage	Release Time	Contact Material	Coil Type	Contact Form	Features	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Operate Time	Switching Voltage	Coil Resistance	Relay Type	Contact Rating (Current)	Mounting Type	Coil Current
Phoenix Contact 2834591	230 VAC	22 ms	Silver Nickel (AgNi)	Non Latching	DPDT (2 Form C)	Lighted Indicator Socket Included	-25 °C	60 °C	Spring Terminal	12 ms	250 VAC 250 VDC	41.8 kOhms	General Purpose	8 A	DIN Rail	5.5 mA
Phoenix Contact 2834533	24 VAC	14 ms	Gold (Au) Silver Nickel (AgNi)	Non Latching	DPDT (2 Form C)	Lighted Indicator Varistor	-25 °C	60 °C	Screw Terminal	12 ms	250 VAC 250 VDC	923.08 Ohms	General Purpose	8 A	DIN Rail	26 mA
Phoenix Contact 2834520	24 VDC	10 ms	Gold (Au) Silver Nickel (AgNi)	Non Latching	DPDT (2 Form C)	Diode Lighted Indicator Socket Included	-25 °C	60 °C	Screw Terminal	8 ms	250 VAC 250 VDC	1263 Ohms	General Purpose	8 A	DIN Rail	19 mA
Phoenix Contact 2834546	120 VAC	16 ms	Gold (Au) Silver Nickel (AgNi)	Non Latching	DPDT (2 Form C)	Lighted Indicator Varistor	-25 °C	60 °C	Screw Terminal	12 ms	250 VAC 250 VDC	17.14 kOhms	General Purpose	8 A	DIN Rail	7 mA
Phoenix Contact 2834559	230 VAC	22 ms	Gold (Au) Silver Nickel (AgNi)	Non Latching	DPDT (2 Form C)	Lighted Indicator Varistor	-25 °C	60 °C	Screw Terminal	12 ms	250 VAC 250 VDC	41.82 kOhms	General Purpose	8 A	DIN Rail	5.5 mA
Phoenix Contact 2834504	120 VAC	16 ms	Silver Nickel (AgNi)	Non Latching	DPDT (2 Form C)	Lighted Indicator Socket Included Varistor	-25 °C	60 °C	Screw Terminal	12 ms	250 VAC 250 VDC	17.1 kOhms	General Purpose	8 A	DIN Rail	7 mA
Phoenix Contact 2834517	230 VAC	22 ms	Silver Nickel (AgNi)	Non Latching	DPDT (2 Form C)	Lighted Indicator Socket Included Varistor	-25 °C	60 °C	Screw Terminal	12 ms	250 VAC 250 VDC	41.8 kOhms	General Purpose	8 A	DIN Rail	5.5 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

28345 Series

General Purpose Relay DPDT (2 Form C) 24VDC Coil DIN Rail
