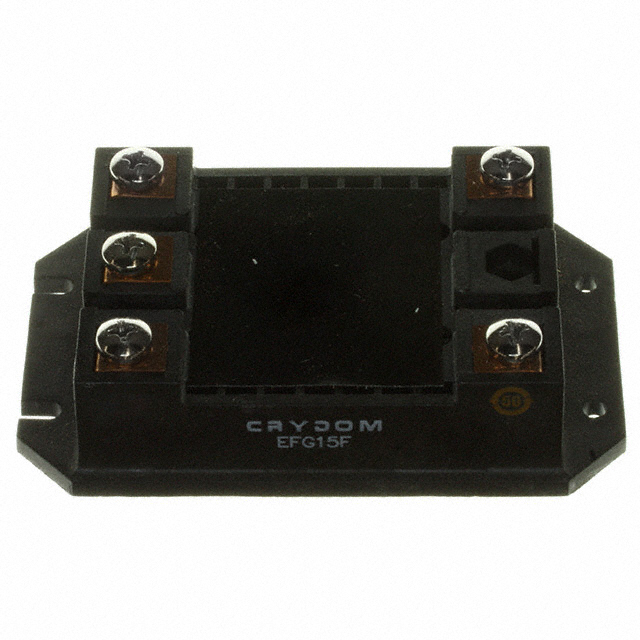

EFG15F

Obsolete

Sensata-Crydom

BRIDGE RECT 1P 1.2KV 125A MODULE

Search across all available documentation for this part.

Obsolete

Sensata-Crydom

BRIDGE RECT 1P 1.2KV 125A MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	EFG15F

Current - Average Rectified (Io)	125 A
Diode Type	Single Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Supplier Device Package	Module
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.4 V
Voltage - Peak Reverse (Max) [Max]	1.2 kV

Part	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max) [Max]	Diode Type	Current - Average Rectified (Io)	Technology
Sensata-Crydom EFG15G	Module	-40 °C	125 ¯C	Chassis Mount	Module	1.55 V	1.4 kV	Single Phase	125 A	Standard
Sensata-Crydom EFG15F	Module	-40 °C	125 ¯C	Chassis Mount	Module	1.4 V	1.2 kV	Single Phase	125 A	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 1.2 kV Chassis Mount Module
