2049/40 100SF

Obsolete

3M (TC)

CBL RIBN 40COND 0.025 WHITE 100'

Search across all available documentation for this part.

Obsolete

3M (TC)

CBL RIBN 40COND 0.025 WHITE 100'

Technical Specifications

Parameters and characteristics for this part

Part	Ribbon Width [custom]	Ribbon Width [custom]	Voltage	Wire Gauge	Shielding	Conductor Material	Cable Type	Pitch [x]	Pitch [x]	Number of Conductors	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Ratings	Conductor Strand	First Conductor Mark	Ribbon Thickness	Ribbon Thickness	Insulation Resistance	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width	Ribbon Width	Length [x]	Length [x]	Features	Ribbon Width
3M (TC) 2049/60 300	1.501 in	38.12 mm	30 V	30 AWG	Unshielded	Copper Tinned	Flat Cable	0.64 mm	0.025 in	60	Polyolefin (PO)	-20 C	105 ░C	91.44 m	300 ft	UL Style 20930	Solid	Blue	0.64 mm	0.025 in	10 GOhm
3M (TC) 2049/68 300			30 V	30 AWG	Unshielded	Copper Tinned	Flat Cable	0.64 mm	0.025 in	68	Polyolefin (PO)	-20 C	105 ░C	91.44 m	300 ft	UL Style 20930	Solid	Blue	0.64 mm	0.025 in	10 GOhm	1.7 in	43.18 mm
3M (TC) 2049/40 100SF			30 V	30 AWG	Unshielded	Copper Tinned	Flat Cable	0.64 mm	0.025 in	40	Polyolefin (PO)	-20 C	105 ░C			UL Style 20930	Solid	Blue	0.64 mm	0.025 in	10 GOhm			1 in	25.4 mm	100 ft	30.48 m	Splice Free
3M (TC) 2049/60 100SF	1.501 in	38.12 mm	30 V	30 AWG	Unshielded	Copper Tinned	Flat Cable	0.64 mm	0.025 in	60	Polyolefin (PO)	-20 C	105 ░C			UL Style 20930	Solid	Blue	0.64 mm	0.025 in	10 GOhm					100 ft	30.48 m	Splice Free
3M (TC) 2049/100 300			30 V	30 AWG	Unshielded	Copper Tinned	Flat Cable	0.64 mm	0.025 in	100	Polyolefin (PO)	-20 C	105 ░C	91.44 m	300 ft	UL Style 20930	Solid	Blue	0.64 mm	0.025 in	10 GOhm			63.5 mm					2.5 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

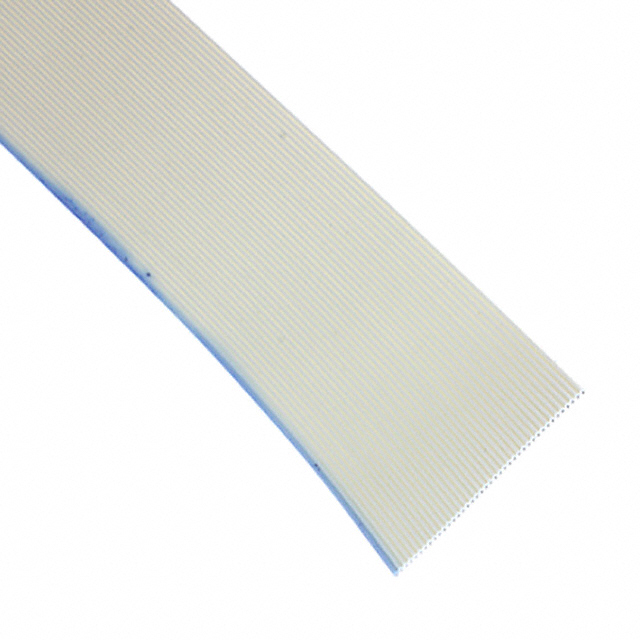

Flat Ribbon Cable White 40 Conductors 0.025" (0.64mm) Flat Cable 100.0' (30.48m)
