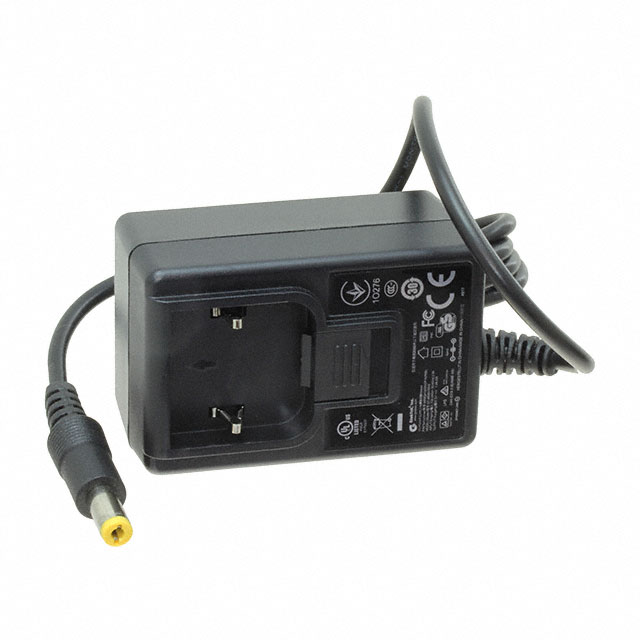

WR9QA1200CCP-N(R6B)

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 5V 6W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WR9QA1200CCP-N(R6B)

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 5V 6W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WR9QA1200CCP-N(R6B)

Applications	ITE (Commercial)
Approval Agency	PSE, BSI, EAC, CCC, FCC, cULus, CB, VCCI, RCM, UKRSepro, CE, LPS, GS
Cord Length	48.4 in
Cord Length	1.23 m
Current - Output (Max) [Max]	1.2 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	6 W
Region Utilized	International
Size / Dimension [x]	1.59 in
Size / Dimension [x]	40.5 mm
Size / Dimension [y]	2.52 "
Size / Dimension [y]	64 mm
Size / Dimension [z]	30 mm
Size / Dimension [z]	1.18 in
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

WR9QA1200 Series

Part	Voltage - Output	Standard Number	Approval Agency	Polarization	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Cord Length	Cord Length	Output Connector	Output Connector [diameter]	Output Connector [z]	Current - Output (Max) [Max]	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Input Connector	Form	No Load Power Consumption [Max]	Efficiency	Applications	Region Utilized	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Cord Length	Output Connector [custom]	No Load Power Consumption	Features
GlobTek, Inc. WR9QA1200CCPNAIMR6B	5 V	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro UL VCCI	Positive Center	36.8 mm	74 mm	1.45 in	1.71 "	2.91 "	43.5 mm	6 W	1.2 m	47.2 in	Barrel Plug	2.1 mm 5.5 mm	11 mm	1.2 A	Multi-Blade (Sold Separately)	50 °C	-20 C	Multi-Blade	Wall Mount (Class II)	75 mW	Level VI	Household Appliances ITE (Commercial) Medical	International	90 VAC	264 VAC
GlobTek, Inc. WR9QA1200MICB-IMR6W	5 V		BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro UL VCCI		36.8 mm	43.5 mm	1.45 in	2.91 "	1.71 in	74 mm	6 W		1.5 m	USB Micro			1.2 A	Multi-Blade (Sold Separately)			Multi-Blade	Wall Mount (Class II)	75 mW	CoC Tier 2 Level VI	Household Appliances ITE (Commercial) Medical	International	90 VAC	264 VAC	-10 °C	50 °C	59 in
GlobTek, Inc. WR9QA1200USBBCMEDR6B	5 V	60335-1 60601-1 60950-1 62368-1	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro UL VCCI		36.8 mm	43.5 mm	1.45 in	2.91 "	1.71 in	74 mm	6 W		1.5 m	USB B Plug			1.2 A	Multi-Blade (Sold Separately)			Multi-Blade	Wall Mount (Class II)	75 mW	CoC Tier 2 Level VI	Household Appliances ITE (Commercial) Medical	International	90 VAC	264 VAC	-10 °C	50 °C	59 in
GlobTek, Inc. WR9QA1200CRPCIMR6W	5 V		BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro UL VCCI	Positive Center	36.8 mm	43.5 mm	1.45 in	2.91 "	1.71 in	74 mm	6 W		1.5 m	Barrel Plug R/A	2.1 mm 5.5 mm		1.2 A	Multi-Blade (Sold Separately)			Multi-Blade	Wall Mount (Class II)	75 mW	CoC Tier 2 Level VI	Household Appliances ITE (Commercial) Medical	International	90 VAC	264 VAC	-10 °C	50 °C	59 in	11 mm
GlobTek, Inc. WR9QA1200T00-IMR6B	5 V	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro UL VCCI		36.8 mm	74 mm	1.45 in	1.71 "	2.91 "	43.5 mm	6 W		1.5 m	1.3mm x 3.5mm Barrel Plug Kit			1.2 A	Multi-Blade (Sold Separately)	50 °C	-20 C	Multi-Blade	Wall Mount (Class II)	75 mW	Level VI	Household Appliances ITE (Commercial) Medical	International	90 VAC	264 VAC			59 in
GlobTek, Inc. WR9QA1200MICBIMEUR6B	5 V		BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro UL VCCI		36.8 mm	43.5 mm	1.45 in	2.91 "	1.71 in	74 mm	6 W		1.5 m	USB Micro			1.2 A	Multi-Blade (Sold Separately)			Multi-Blade	Wall Mount (Class II)	75 mW	CoC Tier 2 Level VI	Household Appliances ITE (Commercial) Medical	International	90 VAC	264 VAC	-10 °C	50 °C	59 in
GlobTek, Inc. WR9QA1200CCP-N(R6B)	5 V	60950-1	BSI CB CCC CE cULus EAC FCC GS LPS PSE RCM UKRSepro VCCI	Positive Center	30 mm	64 mm	1.18 in	1.59 in	2.52 "	40.5 mm	6 W		1.23 m	Barrel Plug	2.1 mm 5.5 mm	11 mm	1.2 A	Multi-Blade (Sold Separately)	40 °C	0 °C	Multi-Blade	Wall Mount (Class II)	75 mW	Level VI	ITE (Commercial)	International	90 VAC	264 VAC			48.4 in
GlobTek, Inc. WR9QA1200MSB-IMR6B	5 V	60335-1 60601-1 60950-1	2MOPP BIS BSMI CB CE cETLus ETL IEC LPS Morocco PSE UKCA Ukraine UL VCCI WEEE								6 W		1.53 m	USB Mini			1.2 A	Multi-Blade (Sold Separately)			Multi-Blade	Wall Mount (Class II)		Level VI	Household Appliances ITE (Commercial) Medical	International	100 VAC	240 VAC	-10 °C	50 °C	60.2 in		75 mW	IP42
GlobTek, Inc. WR9QA1200MICB-IMR6B	5 V		BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro UL VCCI		36.8 mm	43.5 mm	1.45 in	2.91 "	1.71 in	74 mm	6 W		1.5 m	USB Micro			1.2 A	Multi-Blade (Sold Separately)			Multi-Blade	Wall Mount (Class II)	75 mW	CoC Tier 2 Level VI	Household Appliances ITE (Commercial) Medical	International	90 VAC	264 VAC	-10 °C	50 °C	59 in
GlobTek, Inc. WR9QA1200MICB23IMR6B	5 V	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro UL VCCI		36.8 mm	74 mm	1.45 in	1.71 "	2.91 "	43.5 mm	6 W		1.53 m	USB Micro			1.2 A	Multi-Blade (Sold Separately)	50 °C	-20 C	Multi-Blade	Wall Mount (Class II)	75 mW	Level VI	Household Appliances ITE (Commercial) Medical	International	90 VAC	264 VAC			60.2 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.47
		5	$ 9.22
		10	$ 8.71
		25	$ 8.19
		50	$ 7.68
		120	$ 7.17
		360	$ 6.91
		600	$ 6.81

Description

General part information

WR9QA1200 Series

5V 6 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
