1424529

Active

Phoenix Contact

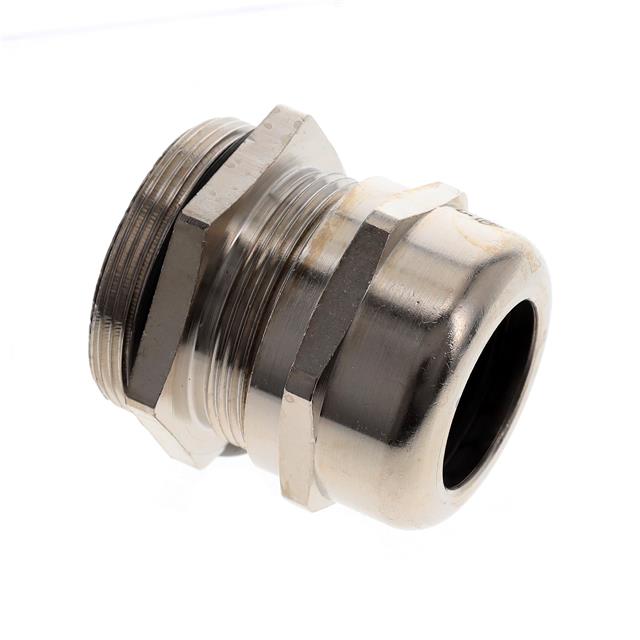

CABLE GLAND 18.01-25MM M40 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 18.01-25MM M40 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	1424529

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP66, IP68, IP69
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max)	25 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.984 in
Outside Cable Diameter (Min) [Min] [diameter]	0.709 in
Outside Cable Diameter (Min) [Min] [diameter]	18.01 mm
Thread Length	0.354 in
Thread Length	9 mm
Thread Size	M40x1.5
Type	Cable Gland

Part	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Type	Material	Color	Ingress Protection	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Includes	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max)
Phoenix Contact 1424479	M40x1.5	100 °C	-40 °C	Cable Gland	Polyamide (PA) Nylon	Gray	IP66/IP68	22 mm	0.866 in	32 mm	1.26 in	Seal	0.709 in	18.01 mm
Phoenix Contact 1424474	M40x1.5	100 °C	-40 °C	Cable Gland	Polyamide (PA) Nylon	Gray	IP66/IP68	22 mm	0.866 in	32 mm	1.26 in	Seal	0.709 in	18.01 mm
Phoenix Contact 1424546	M40x1.5	100 °C	-40 °C	Cable Gland	Stainless Steel	Silver	IP66 IP68 IP69	19 mm	0.748 in			O-Ring Seal	0.354 in	9 mm	28 mm	1.102 in
Phoenix Contact 1411128		100 °C	-40 °C	Cable Gland	Polyamide (PA) Nylon	Gray	IP66/IP68	19 mm	0.748 in			Seal	0.394 in	10 mm	28 mm	1.102 in
Phoenix Contact 1424529	M40x1.5	100 °C	-40 °C	Cable Gland	Brass Nickel Plated	Silver	IP66 IP68 IP69	18.01 mm	0.709 in			O-Ring Seal	0.354 in	9 mm		0.984 in	25 mm
Phoenix Contact 1424484	M40x1.5	100 °C	-20 C	Cable Gland	Polyamide (PA) Nylon	Black	IP66/IP68	22 mm	0.866 in	32 mm	1.26 in	Seal	0.709 in	18.01 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.69

General part information

Cable Gland Brass, Nickel Plated M40x1.5 Silver
