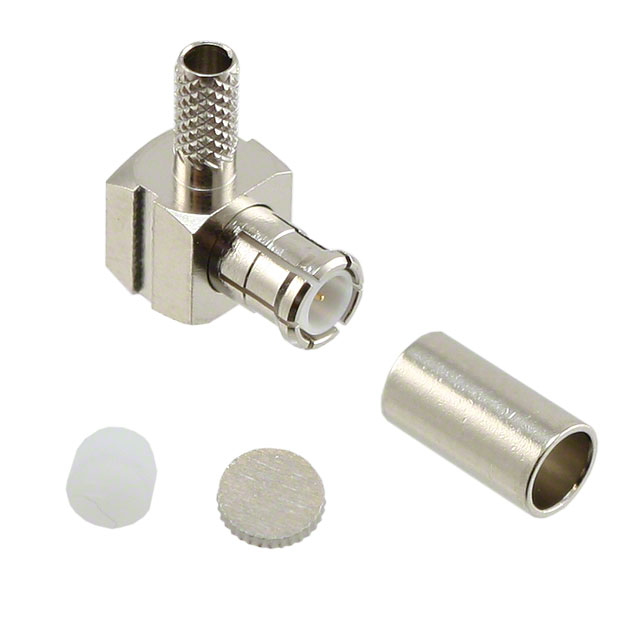

919-104P-51A1X

NRND

Amphenol RF

CONN MCX PLUG R/A 50 OHM SOLDER

Search across all available documentation for this part.

NRND

Amphenol RF

CONN MCX PLUG R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	919-104P-51A1X

Body Finish	Nickel
Body Material	Beryllium Copper
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polyoxymethylene (POM) Acetal, Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Includes	Ferrule, Insulator, Connector, End Cap
Insertion Loss	0.1 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Shield Termination	Body Material	Body Finish	Mounting Type	Center Contact Material	Includes	Impedance	Mating Cycles	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Center Contact Plating	Fastening Type	Dielectric Material	Connector Type	Frequency - Max [Max]	Number of Ports	Housing Color	Insertion Loss	Contact Termination	Cable Group [Min]	Cable Group [Max]
Amphenol RF 919-104P-51A1X	Crimp	Beryllium Copper	Nickel	Free Hanging (In-Line) Right Angle	Brass	Connector End Cap Ferrule Insulator	50 Ohms	500	188 188A 316 LMR-100 M17/119-RG174 RG-174	-65 ░C	165 °C	MCX	Gold	Snap-On	Polyoxymethylene (POM) Acetal Polytetrafluoroethylene (PTFE)	Male Pin Plug	6000 MHz	1	Silver	0.1 dB	Solder
Amphenol RF 919-107J-51SX	Crimp	Brass	Gold	Free Hanging (In-Line)	Beryllium Copper	1 Connector 1 Contact 1 Ferrule	50 Ohms	500	188 188A 316 LMR-100 M17/119-RG174 RG-174	-65 ░C	165 °C	MCX	Gold	Snap-On	Polytetrafluoroethylene (PTFE)	Female Socket Jack	6000 MHz	1	Gold	0.1 dB	Solder
Amphenol RF 919-102P-51AX	Solder	Beryllium Copper	Gold	Free Hanging (In-Line) Right Angle	Brass	1 Connector 1 End Cap 1 Insulator	50 Ohms	500	RG-405 Semi Rigid	-65 ░C	165 °C	MCX	Gold	Snap-On	Polyoxymethylene (POM) Acetal Polytetrafluoroethylene (PTFE)	Male Pin Plug	6000 MHz	1	Gold	0.1 dB	Solder	0.085 in	0.086 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
