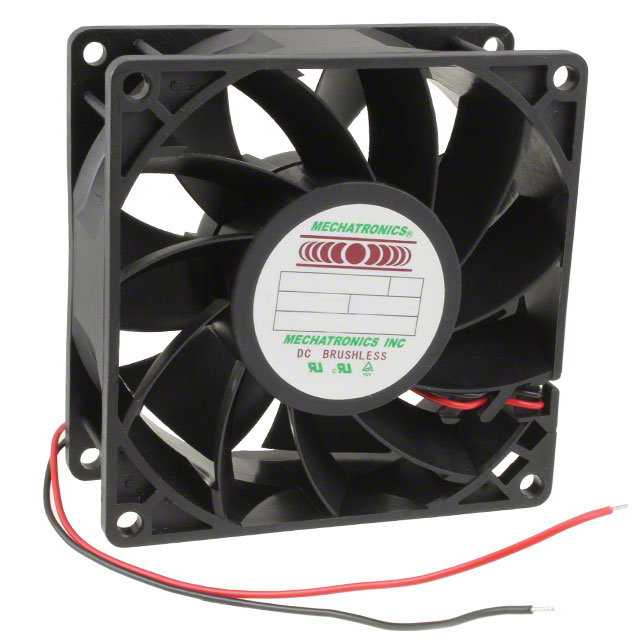

MD9238X24B-FSR
ActiveMechatronics Bearing Group
FAN AXIAL 92X38MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
MD9238X24B-FSR
ActiveMechatronics Bearing Group
FAN AXIAL 92X38MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MD9238X24B-FSR |
|---|---|
| Air Flow | 3.46 m³/min |
| Air Flow | 123.6 CFM |
| Approval Agency | CE, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.7 A |
| Fan Type | Tubeaxial |
| Features | Thermal Overload Protector (TOP) |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 58.4 dB(A) |
| RPM | 5400 RPM |
| Static Pressure | 209.2 Pa |
| Static Pressure | 0.84 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Weight | 180.08 g |
| Weight | 0.397 lb |
| Width [y] | 38 mm |
MD9238 Series
| Part | Bearing Type | Voltage - Rated | Static Pressure | Static Pressure | Width [y] | Approval Agency | Termination | Features | Material - Blade | Weight | Weight | Current Rating (Amps) | Air Flow | Air Flow | Noise | RPM | Fan Type | Voltage - Rated [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mechatronics Bearing Group | Ball | 12 VDC | 166.9 Pa | 0.67 in H2O | 38 mm | CE TUV UL | 2 Wire Leads | Thermal Overload Protector (TOP) | Polybutylene Terephthalate (PBT) | 180.08 g | 0.397 lb | 1 A | 110.6 CFM | 3.1 m³/min | 55 dB | 4800 RPM | Tubeaxial | |
Mechatronics Bearing Group | Ball | 24 VDC | 166.9 Pa | 0.67 in H2O | 38 mm | CE TUV UL | 2 Wire Leads | Thermal Overload Protector (TOP) | Polybutylene Terephthalate (PBT) | 180.08 g | 0.397 lb | 0.5 A | 110.6 CFM | 3.1 m³/min | 55 dB | 4800 RPM | Tubeaxial | |
Mechatronics Bearing Group | Ball | 24 VDC | 77.2 Pa | 0.31 in H2O | 38 mm | CE TUV UL | 3 Wire Leads | Speed Sensor (Tach) Thermal Overload Protector (TOP) | Polybutylene Terephthalate (PBT) | 180.08 g | 0.397 lb | 0.19 A | 71 CFM | 1.99 mł/min | 44.5 dB | 3200 RPM | Tubeaxial | |
Mechatronics Bearing Group | Ball | 24 VDC | 209.2 Pa | 0.84 in H2O | 38 mm | CE TUV UL | 2 Wire Leads | Conformal Coating Thermal Overload Protector (TOP) | Polybutylene Terephthalate (PBT) | 180.08 g | 0.397 lb | 0.7 A | 123.6 CFM | 3.46 m³/min | 58.4 dB(A) | 5400 RPM | Tubeaxial | |
Mechatronics Bearing Group | Ball | 149.5 Pa | 0.6 in H2O | 38 mm | CE TUV UL | 2 Wire Leads | Conformal Coating Thermal Overload Protector (TOP) | Polybutylene Terephthalate (PBT) | 180.08 g | 0.397 lb | 0.22 A | 100.7 CFM | 2.82 m³/min | 53.5 dB | 4400 RPM | Tubeaxial | 48 VDC | |
Mechatronics Bearing Group | Ball | 24 VDC | 209.2 Pa | 0.84 in H2O | 38 mm | CE TUV UL | 2 Wire Leads | Thermal Overload Protector (TOP) | Polybutylene Terephthalate (PBT) | 180.08 g | 0.397 lb | 0.7 A | 123.6 CFM | 3.46 m³/min | 58.4 dB(A) | 5400 RPM | Tubeaxial | |
Mechatronics Bearing Group | Ball | 149.5 Pa | 0.6 in H2O | 38 mm | CE TUV UL | 2 Wire Leads | Thermal Overload Protector (TOP) | Polybutylene Terephthalate (PBT) | 180.08 g | 0.397 lb | 0.22 A | 100.7 CFM | 2.82 m³/min | 53.5 dB | 4400 RPM | Tubeaxial | 48 VDC | |
Mechatronics Bearing Group | Ball | 24 VDC | 149.5 Pa | 0.6 in H2O | 38 mm | CE TUV UL | 3 Wire Leads | Speed Sensor (Tach) Thermal Overload Protector (TOP) | Polybutylene Terephthalate (PBT) | 180.08 g | 0.397 lb | 450 mA | 100.7 CFM | 2.82 m³/min | 53.5 dB | 4400 RPM | Tubeaxial | |
Mechatronics Bearing Group | Ball | 24 VDC | 166.9 Pa | 0.67 in H2O | 38 mm | CE TUV UL | 2 Wire Leads | Thermal Overload Protector (TOP) | Polybutylene Terephthalate (PBT) | 180.08 g | 0.397 lb | 0.5 A | 110.6 CFM | 3.1 m³/min | 55 dB | 4800 RPM | Tubeaxial |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.96 | |
| 10 | $ 16.01 | |||
| 25 | $ 15.30 | |||
| 50 | $ 14.78 | |||
| 100 | $ 14.28 | |||
| 250 | $ 13.64 | |||
| 500 | $ 13.17 | |||
Description
General part information
MD9238 Series
Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 123.6 CFM (3.46m³/min) 2 Wire Leads
