5120.5076.0

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PNL SLDR

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PNL SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	5120.5076.0

Accomodates a Fuse	False
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	10 A
Features	Shielded, Board Lock
Filter Type	Filtered (EMI, RFI) - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle
Panel Cutout Dimensions [x]	30.5 mm
Panel Cutout Dimensions [y]	22.5 mm
Panel Thickness	3 mm
Panel Thickness	0.118 in
Termination	Solder
Voltage Rating - Appliance Inlet	250 VAC

Part	Termination	Current Rating - Filter	Material Flammability Rating	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Connector Style	Panel Thickness	Panel Thickness	Accomodates a Fuse	Filter Type	Current Rating - Appliance Inlet	Ingress Protection	Features	Connector Type	Voltage Rating - Appliance Inlet
SCHURTER Inc. 5120.5076.0	Solder	10 A	UL94 V-0	Panel Mount Flange Through Hole Right Angle	22.5 mm	30.5 mm	CCC cULus ENEC	IEC 320-C14	3 mm	0.118 in		Filtered (EMI RFI) - Commercial	10 A	IP40	Board Lock Shielded	Male Blades Receptacle	250 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.33

General part information

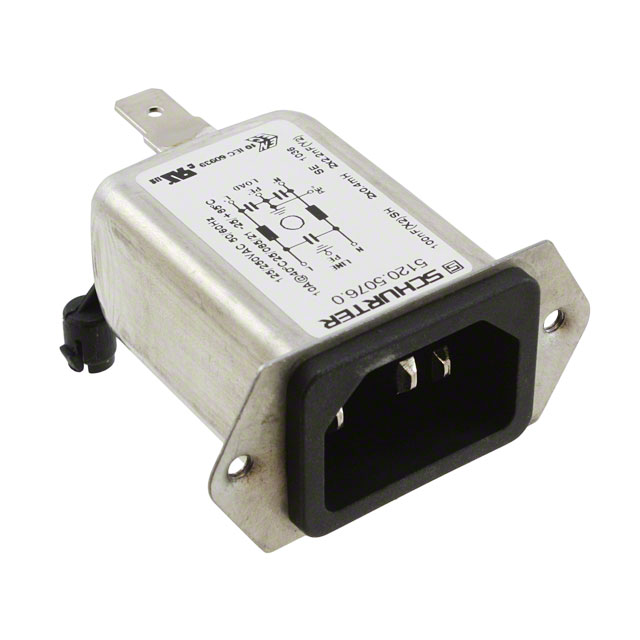

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
