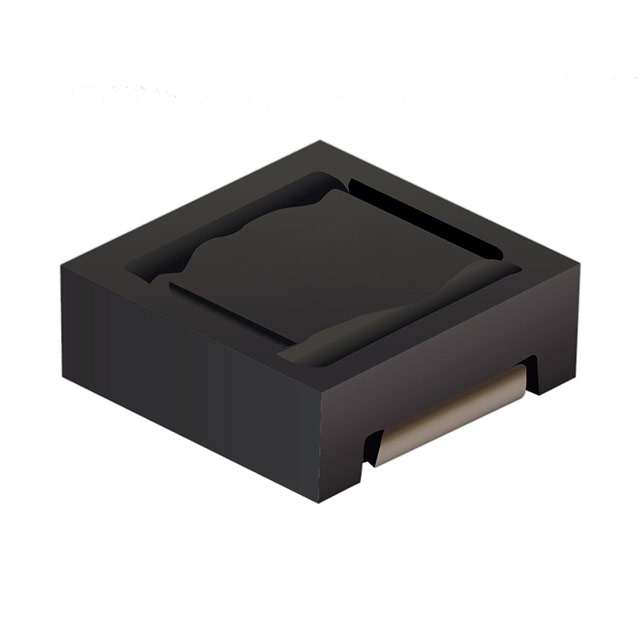

SRR4818A-6R8Y

Active

Bourns Inc.

INDUCTOR, SHIELDED, 6.8UH, 30%, AEC-Q200

Search across all available documentation for this part.

Active

Bourns Inc.

INDUCTOR, SHIELDED, 6.8UH, 30%, AEC-Q200

Technical Specifications

Parameters and characteristics for this part

Part	DC Resistance (DCR)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Inductance	Package / Case	Ratings	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Frequency - Self Resonant	Type	Material - Core	Tolerance	Current - Saturation (Isat)	Current Rating (Amps)	Inductance Frequency - Test	DC Resistance (DCR) [Max]
Bourns Inc. SRR4818A-150M	220 mOhm	2 mm	0.079 in	Shielded	15 µH	Nonstandard	AEC-Q200	Surface Mount	0.189 "	4.8 mm	4.8 mm	0.189 in	30 MHz	Drum Core Wirewound	Ferrite	20 %	870 mA	1.5 A	100 kHz
Bourns Inc. SRR4818A-120M		2 mm	0.079 in	Shielded	12 µH	Nonstandard	AEC-Q200	Surface Mount	0.189 "	4.8 mm	4.8 mm	0.189 in	37 MHz	Drum Core Wirewound	Ferrite	20 %	950 mA	1.6 A	100 kHz	170 mOhm
Bourns Inc. SRR4818A-330M		2 mm	0.079 in	Shielded	33 µH	Nonstandard	AEC-Q200	Surface Mount	0.189 "	4.8 mm	4.8 mm	0.189 in	20 MHz	Drum Core Wirewound	Ferrite	20 %	560 mA	900 mA	100 kHz	500 mOhm
Bourns Inc. SRR4818A-220M		2 mm	0.079 in	Shielded	22 µH	Nonstandard	AEC-Q200	Surface Mount	0.189 "	4.8 mm	4.8 mm	0.189 in	25 MHz	Drum Core Wirewound	Ferrite	20 %	720 mA	1.25 A	100 kHz	360 mOhm
Bourns Inc. SRR4818A-6R8Y	100 mOhm	2 mm	0.079 in	Shielded	6.8 µH	Nonstandard	AEC-Q200	Surface Mount	0.189 "	4.8 mm	4.8 mm	0.189 in	45 MHz	Drum Core Wirewound	Ferrite	30 %	1.25 A	2.2 A	100 kHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.8 µH Shielded Drum Core, Wirewound Inductor 2.2 A 100mOhm Max Nonstandard
