SNP2410H4

Active

HELLERMANNTYTON

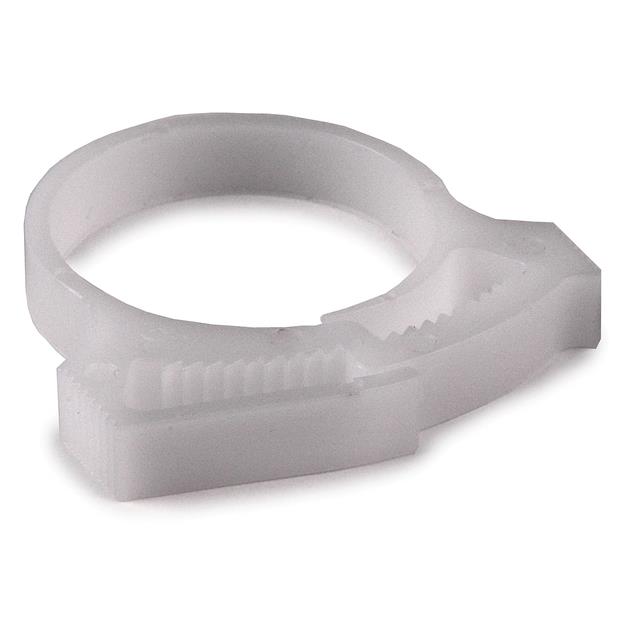

SNAPPER HOSE CLAMP, 1.0" 1.12" BUNDLE DIAMETER, POM, WHITE, 500/PKG

Search across all available documentation for this part.

Active

HELLERMANNTYTON

SNAPPER HOSE CLAMP, 1.0" 1.12" BUNDLE DIAMETER, POM, WHITE, 500/PKG

Technical Specifications

Parameters and characteristics for this part

Specification	SNP2410H4

Color	White
Length [Max]	1.523 "
Length [Max]	38.68 mm
Length [Min]	0.963 "
Length [Min]	24.46 mm
Material	Polyacetal (POM)
Material Flammability Rating	UL94 HB
Material Thickness	0.069 in
Material Thickness	1.75 mm
Opening Size [Max]	28.83 mm
Opening Size [Max]	1.135 in
Opening Size [Min]	25.02 mm
Opening Size [Min]	0.985 in
Type	Clamp, Hose
Type Attributes	Push-Fit
Width	0.292 in
Width	7.42 mm

Part	Length [Min]	Length [Max]	Length [Min]	Length [Max]	Width	Width	Type Attributes	Opening Size [Max]	Opening Size [Min]	Opening Size [Max]	Opening Size [Min]	Material	Material Flammability Rating	Type	Color	Material Thickness	Material Thickness
HELLERMANNTYTON SNP2410H4	0.963 "	1.523 "	24.46 mm	38.68 mm	0.292 in	7.42 mm	Push-Fit	28.83 mm	25.02 mm	1.135 in	0.985 in	Polyacetal (POM)	UL94 HB	Clamp Hose	White	0.069 in	1.75 mm
