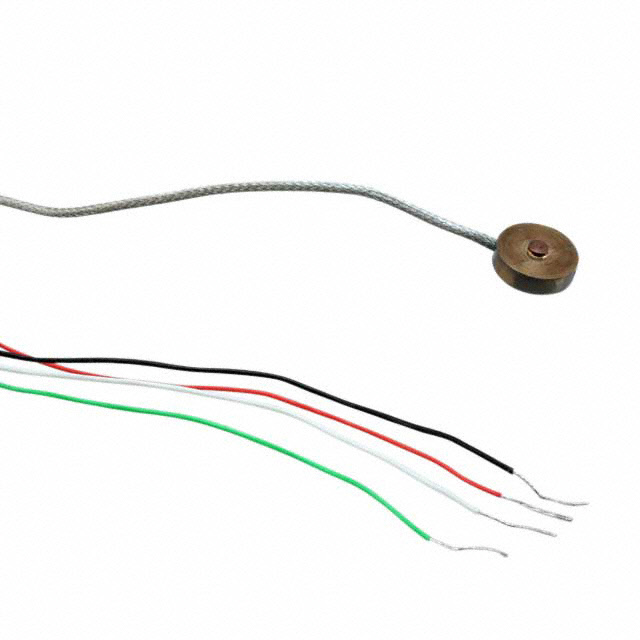

060-2444-06

Active

Honeywell Sensing and Productivity Solutions T&M

SENSOR FORCE LOAD CELL 250LBS

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions T&M

SENSOR FORCE LOAD CELL 250LBS

Technical Specifications

Parameters and characteristics for this part

Specification	060-2444-06

Accuracy	0.7 %
Actuator Style/Size	Round
Actuator Style/Size	3.05 mm
Actuator Type	Pushbutton
Compensated Temperature [Max]	71 °C
Compensated Temperature [Min]	15 °C
Includes	Sensor
Operating Force	250 lbs
Operating Force	113.4 kgf
Operating Temperature [Max]	121 °C
Operating Temperature [Min]	-54 °C
Sensor Type	Load Cell

Part	Actuator Style/Size	Actuator Style/Size	Operating Force	Operating Force	Actuator Type	Sensor Type	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Compensated Temperature [Max]	Compensated Temperature [Min]	Accuracy
Honeywell Sensing and Productivity Solutions T&M 060-2444-06	Round	3.05 mm	250 lbs	113.4 kgf	Pushbutton	Load Cell	Sensor	121 °C	-54 °C	71 °C	15 °C	0.7 %
Honeywell Sensing and Productivity Solutions T&M 060-2444-03	Round	3.05 mm	100 lbs	45.36 kgf	Pushbutton	Load Cell	Sensor	121 °C	-54 °C	71 °C	15 °C	0.7 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SENSOR FORCE LOAD CELL 250LBS
