C1CXG-1036M

Active

CW Industries

IDC CABLE - CKC10G/AE10M/X

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CKC10G/AE10M/X

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Length [x]	Length [x]	Contact Finish	Features	Pitch - Cable	Pitch - Cable	Cable Termination	Shielding	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Number of Positions	Number of Positions	Color
CW Industries C1CXG-1636G	2	3 ft	914.4 mm	Gold	Polarizing Key	0.05 "	1.27 mm	IDC	Unshielded	Socket to Cable	10 Áin	0.25 Ám	0.1 in	2.54 mm	16
CW Industries C1CXG-1436G	2	3 ft	914.4 mm	Gold	Polarizing Key	0.05 "	1.27 mm	IDC	Unshielded	Socket to Cable	10 Áin	0.25 Ám	0.1 in	2.54 mm		14
CW Industries C1CXG-1636M	2	3 ft	914.4 mm	Gold	Polarizing Key	0.05 "	1.27 mm	IDC	Unshielded	Socket to Cable	10 Áin	0.25 Ám	0.1 in	2.54 mm	16		Multiple Ribbon
CW Industries C1CXG-1436M	2	3 ft	914.4 mm	Gold	Polarizing Key	0.05 "	1.27 mm	IDC	Unshielded	Socket to Cable	10 Áin	0.25 Ám	0.1 in	2.54 mm		14	Multiple Ribbon
CW Industries C1CXG-1036M	2	3 ft	914.4 mm	Gold	Polarizing Key	0.05 "	1.27 mm	IDC	Unshielded	Socket to Cable	10 Áin	0.25 Ám	0.1 in	2.54 mm		10	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

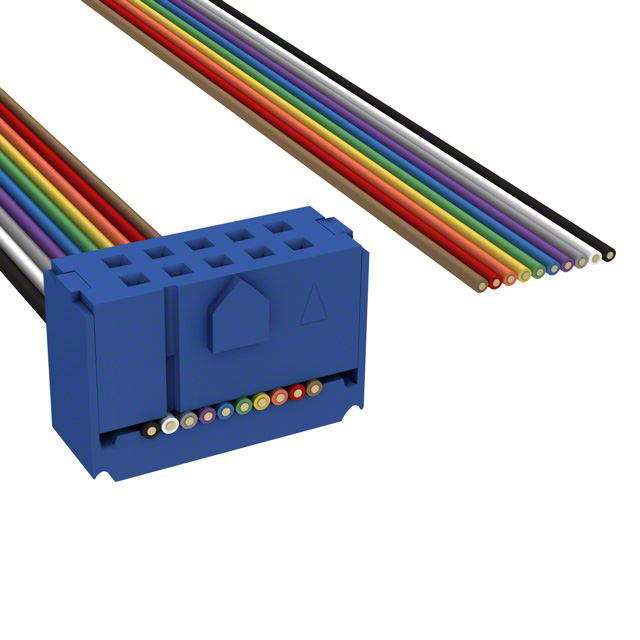

10 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
