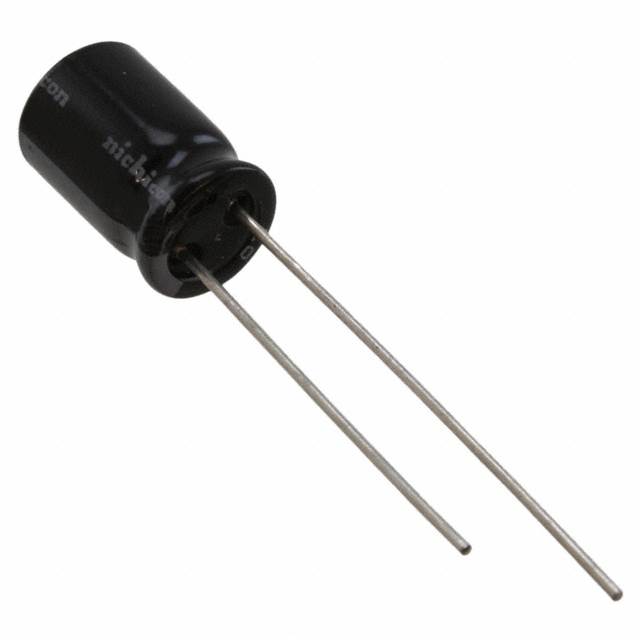

UKL1E680MPD1TD

NICHICON

CAPACITOR: ELECTROLYTIC; THT; 68UF; 25VDC; Ø8X11.5MM; PITCH: 3.5MM

Search across all available documentation for this part.

NICHICON

CAPACITOR: ELECTROLYTIC; THT; 68UF; 25VDC; Ø8X11.5MM; PITCH: 3.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	UKL1E680MPD1TD

Applications	General Purpose
Capacitance	68 µF
Height - Seated (Max) [Max]	0.492 in
Height - Seated (Max) [Max]	12.5 mm
Lead Spacing	3.5 mm
Lead Spacing	0.138 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	460 mA
Ripple Current @ Low Frequency	230 mA
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Tolerance	20 %
Voltage - Rated	25 VDC

Part	Ripple Current @ High Frequency	Mounting Type	Voltage - Rated	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Polarization	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Tolerance	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ Low Frequency	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]
NICHICON UKL1E680MPD1TD	460 mA	Through Hole	25 VDC	Radial Can	85 °C	-40 °C	Polar	2000 Hrs	3.5 mm	0.138 in	20 %	68 µF	0.492 in	12.5 mm	230 mA	General Purpose	0.315 "	8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

68 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
