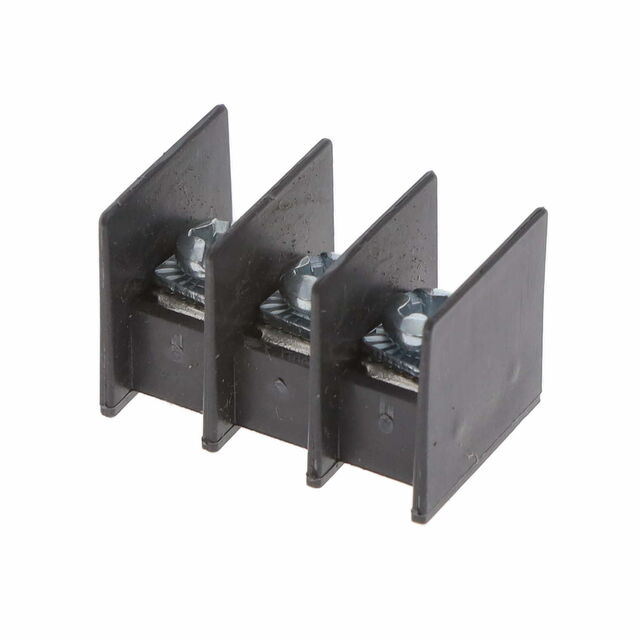

325101-03-0

Active

Curtis Industries

CONN BARRIER STRIP 3CIRC 0.325"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTerminal Blocks Catalog Datasheet

325101-03-0

Active

Curtis Industries

CONN BARRIER STRIP 3CIRC 0.325"

Deep-Dive with AI

DocumentsTerminal Blocks Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325101-03-0

Barrier Type	2 Wall (Dual)
Bottom Termination	Closed
Current Rating (Amps)	15 A
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	3
Number of Rows	1
Number of Wire Entries	3
Operating Temperature	105 C
Pitch [x]	8.26 mm
Pitch [x]	0.325 in
Terminal Block Type	Barrier Block
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG

325101 Series

Part	Bottom Termination	Terminal Block Type	Voltage Rating	Number of Circuits	Barrier Type	Top Termination	Number of Rows	Material Flammability Rating	Mounting Type	Material - Insulation	Current Rating (Amps)	Number of Wire Entries	Wire Gauge [Min]	Wire Gauge [Max]	Operating Temperature	Pitch [x]	Pitch [x]	Number of Wire Entries [custom]
Curtis Industries 325101-20-0	Closed	Barrier Block	300 VDC	20	2 Wall (Dual)	Screws	1	UL94 V-0	Chassis Panel	Polypropylene (PP)	15 A	20	14 AWG	22 AWG	105 C	8.26 mm	0.325 in
Curtis Industries 325101-14-0	Closed	Barrier Block	300 VDC	14	2 Wall (Dual)	Screws	1	UL94 V-0	Chassis Panel	Polypropylene (PP)	15 A	14	14 AWG	22 AWG	105 C	8.26 mm	0.325 in
Curtis Industries 325101-13-0	Closed	Barrier Block	300 VDC	13	2 Wall (Dual)	Screws	1	UL94 V-0	Chassis Panel	Polypropylene (PP)	15 A	13	14 AWG	22 AWG	105 C	8.26 mm	0.325 in
Curtis Industries 325101-02-0	Closed	Barrier Block	300 VDC	2	2 Wall (Dual)	Screws	1	UL94 V-0	Chassis Panel	Polypropylene (PP)	15 A	2	14 AWG	22 AWG	105 C	8.26 mm	0.325 in
Curtis Industries 325101-12-0	Closed	Barrier Block	300 VDC	12	2 Wall (Dual)	Screws	1	UL94 V-0	Chassis Panel	Polypropylene (PP)	15 A	12	14 AWG	22 AWG	105 C	8.26 mm	0.325 in
Curtis Industries 325101-06-0	Closed	Barrier Block	300 VDC	6	2 Wall (Dual)	Screws	1	UL94 V-0	Chassis Panel	Polypropylene (PP)	15 A	6	14 AWG	22 AWG	105 C	8.26 mm	0.325 in
Curtis Industries 325101-07-0	Closed	Barrier Block	300 VDC	7	2 Wall (Dual)	Screws	1	UL94 V-0	Chassis Panel	Polypropylene (PP)	15 A	7	14 AWG	22 AWG	105 C	8.26 mm	0.325 in
Curtis Industries 325101-03-0	Closed	Barrier Block	300 VDC	3	2 Wall (Dual)	Screws	1	UL94 V-0	Chassis Panel	Polypropylene (PP)	15 A	3	14 AWG	22 AWG	105 C	8.26 mm	0.325 in
Curtis Industries 325101-22-0	Closed	Barrier Block	300 VDC	22	2 Wall (Dual)	Screws	1	UL94 V-0	Chassis Panel	Polypropylene (PP)	15 A		14 AWG	22 AWG	105 C	8.26 mm	0.325 in	22
Curtis Industries 325101-05-0	Closed	Barrier Block	300 VDC	5	2 Wall (Dual)	Screws	1	UL94 V-0	Chassis Panel	Polypropylene (PP)	15 A	5	14 AWG	22 AWG	105 C	8.26 mm	0.325 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.86
		10	$ 2.16
		30	$ 2.00
		50	$ 1.80
		100	$ 1.76
		250	$ 1.54
		500	$ 1.41
		1000	$ 1.27
		5000	$ 1.12

Description

General part information

325101 Series

3 Circuit 0.325" (8.26mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Terminal Blocks Catalog

Datasheet
