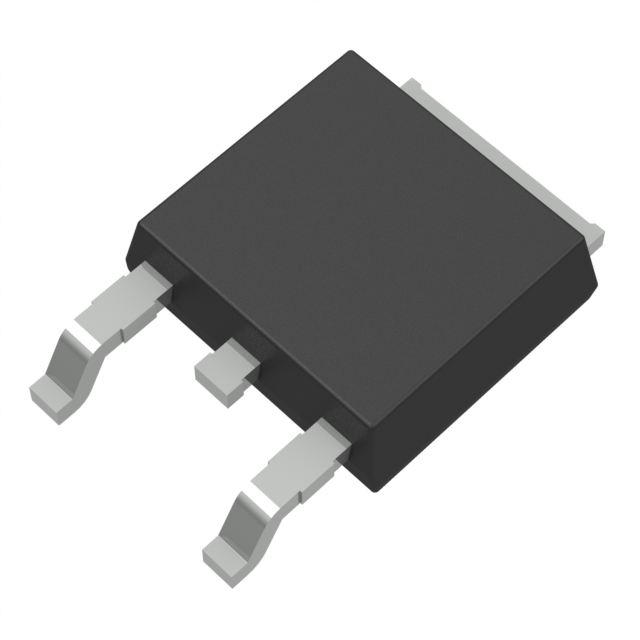

2SA1727TLQ

Rohm Semiconductor

TRANS PNP 400V 0.5A CPT3

Search across all available documentation for this part.

Rohm Semiconductor

TRANS PNP 400V 0.5A CPT3

Technical Specifications

Parameters and characteristics for this part

Specification	2SA1727TLQ

Current - Collector (Ic) (Max) [Max]	500 mA
Current - Collector Cutoff (Max) [Max]	1 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	120
Frequency - Transition	12 MHz
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Power - Max [Max]	1 W
Supplier Device Package	CPT3
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	1 V
Voltage - Collector Emitter Breakdown (Max)	400 V

Part	Vce Saturation (Max) @ Ib, Ic	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Transistor Type	Supplier Device Package	Current - Collector Cutoff (Max) [Max]	Mounting Type	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max) [Max]	Frequency - Transition	Package / Case	Operating Temperature	Power - Max [Max]
Rohm Semiconductor 2SA1727TLQ	1 V	120	PNP	CPT3	1 µA	Surface Mount	400 V	500 mA	12 MHz	DPAK (2 Leads + Tab) SC-63 TO-252-3	150 °C	1 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor PNP 400 V 500 mA 12MHz 1 W Surface Mount CPT3
