086-6SBSMR+

Active

MINI-CIRCUITS

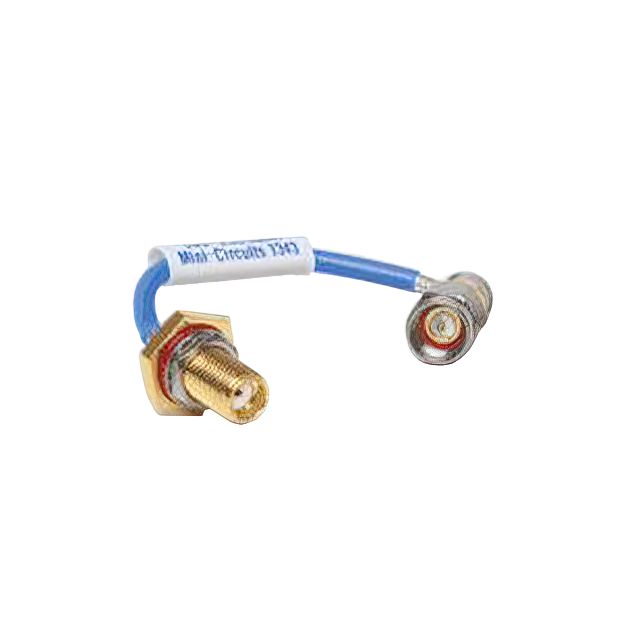

CBL ASSY SMA JACK TO PLUG 6"

Search across all available documentation for this part.

Active

MINI-CIRCUITS

CBL ASSY SMA JACK TO PLUG 6"

Technical Specifications

Parameters and characteristics for this part

Specification	086-6SBSMR+

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMA Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	Hand Formable
Cable Type	0.086
Color	Blue
Frequency - Max [Max]	18 GHz
Length	152.4 mm
Length	6 in
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Impedance	50 Ohms
Style	SMA to SMA

Part	1st Connector	Length	Length	1st Contact Gender	Frequency - Max [Max]	Color	Style [Min]	Style [Max]	2nd Contact Gender	Operating Temperature [Max]	Operating Temperature [Min]	2nd Connector	1st Connector Mounting Type	2nd Connector Mounting Type	Cable Type	Cable Type	Overall Impedance	2nd Connector	Style	1st Connector Mounting Feature
MINI-CIRCUITS 086-6KM+	2.92mm Plug	152.4 mm	6 in	Male	40 GHz	Blue	2.92 mm	2.92 mm	Male	85 °C	-55 °C	2.92 mm	Free Hanging (In-Line)	Free Hanging (In-Line)	Hand Formable	0.086	50 Ohms
MINI-CIRCUITS 086-6SM+	SMA Plug	152.4 mm	6 in	Male	18 GHz	Blue			Male	105 ░C	-55 °C		Free Hanging (In-Line)	Free Hanging (In-Line)	Hand Formable	0.086	50 Ohms	SMA Plug	SMA to SMA
MINI-CIRCUITS 086-6SMRSM+	Right Angle SMA Plug	152.4 mm	6 in	Male	18 GHz	Blue			Male	105 ░C	-55 °C		Free Hanging (In-Line)	Free Hanging (In-Line)	Hand Formable	0.086	50 Ohms	SMA Plug	SMA to SMA
MINI-CIRCUITS 086-6SBSMR+	SMA Jack	152.4 mm	6 in	Female	18 GHz	Blue			Male	105 ░C	-55 °C		Panel Mount	Free Hanging (In-Line)	Hand Formable	0.086	50 Ohms	SMA Plug Right Angle	SMA to SMA	Bulkhead - Front Side Nut
MINI-CIRCUITS 086-6SMR+	Right Angle SMA Plug	152.4 mm	6 in	Male	18 GHz	Blue			Male	105 ░C	-55 °C		Free Hanging (In-Line)	Free Hanging (In-Line)	Hand Formable	0.086	50 Ohms	SMA Plug Right Angle	SMA to SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMA Hand Formable .086 6.000" (152.40mm)
