N3432-5203RB

Active

3M (TC)

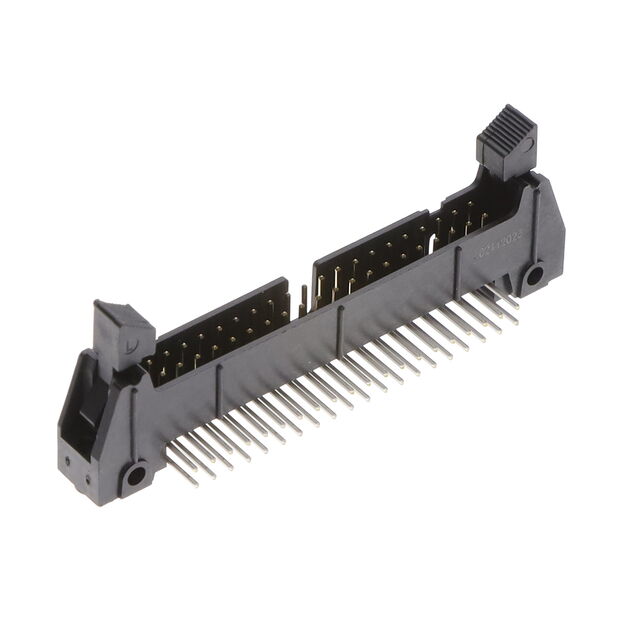

3M FOUR-WALL HEADER, 3000 SERIES, N3432-5203RB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

N3432-5203RB

Active

3M (TC)

3M FOUR-WALL HEADER, 3000 SERIES, N3432-5203RB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	N3432-5203RB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	3.94 mm
Contact Length - Post	0.155 "
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Latch Lock/Eject Hooks, Short
Insulation Color	Black
Insulation Height	0.34 in
Insulation Height	8.64 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

N3432 Series

Part	Style	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating [x]	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Length - Post	Contact Length - Post	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Insulation Color	Number of Rows	Contact Shape	Contact Material	Current Rating (Amps)	Number of Positions Loaded	Insulation Height	Insulation Height	Termination	Connector Type	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding
3M (TC) N3432-6202RB	Board to Board Cable	UL94 V-0	6.1 mm	0.24 in	Male Pin	30 Áin	0.76 Ám	Through Hole	2.84 mm	0.112 in	40	0.1 in	2.54 mm	Tin	0.652 in	16.56 mm	Black	2	Square	Copper Alloy	1.75 A	All	17.27 mm	0.68 in	Solder	Header	Gold	200 µin	5.08 µm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	Latch Lock/Eject Hooks Short	105 ░C	-55 °C	Shrouded - 4 Wall
3M (TC) N3432-6502	Board to Board Cable	UL94 V-0	6.1 mm	0.24 in	Male Pin	30 Áin	0.76 Ám	Through Hole	2.84 mm	0.112 in	40	0.1 in	2.54 mm	Tin-Lead	0.652 in	16.56 mm	Beige	2	Square	Copper Alloy	1.75 A	All	17.27 mm	0.68 in	Solder	Header	Gold	200 µin	5.08 µm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	Latch Lock/Eject Hooks Short	105 ░C	-55 °C	Shrouded - 4 Wall
3M (TC) N3432-L202RB	Board to Board Cable	UL94 V-0	6.1 mm	0.24 in	Male Pin	30 Áin	0.76 Ám	Through Hole Right Angle	2.84 mm	0.112 in	20	0.1 in	2.54 mm	Tin			Black	2	Square	Copper Alloy		All	16.76 mm	0.66 in	Solder	Header Stackable (2)	Gold	200 µin	5.08 µm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	Latch Lock/Eject Hooks Short	105 ░C	-55 °C	Shrouded - 4 Wall
3M (TC) N3432-2303RB	Board to Board Cable	UL94 V-0	6.1 mm	0.24 in	Male Pin	30 Áin	0.76 Ám	Through Hole	3.94 mm	0.155 "	40	0.1 in	2.54 mm	Tin	0.695 in	17.65 mm	Black	2	Square	Copper Alloy	1.75 A	All	17.27 mm	0.68 in	Solder	Header	Gold	200 µin	5.08 µm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	Latch Lock/Eject Hooks Long	105 ░C	-55 °C	Shrouded - 3 Wall
3M (TC) N3432-2002RB	Board to Board Cable	UL94 V-0	6.1 mm	0.24 in	Male Pin	30 Áin	0.76 Ám	Through Hole	2.84 mm	0.112 in	40	0.1 in	2.54 mm	Tin	0.652 in	16.56 mm	Black	2	Square	Copper Alloy	1.75 A	All	17.4 mm	0.685 "	Solder	Header	Gold	200 µin	5.08 µm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	Push-Pull	105 ░C	-55 °C	Shrouded - 3 Wall
3M (TC) N3432-6302RB	Board to Board Cable	UL94 V-0	6.1 mm	0.24 in	Male Pin	30 Áin	0.76 Ám	Through Hole	2.84 mm	0.112 in	40	0.1 in	2.54 mm	Tin	0.652 in	16.56 mm	Black	2	Square	Copper Alloy	1.75 A	All	17.27 mm	0.68 in	Solder	Header	Gold	200 µin	5.08 µm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	Latch Lock/Eject Hooks Long	105 ░C	-55 °C	Shrouded - 4 Wall
3M (TC) N3432-5202RB	Board to Board Cable	UL94 V-0	6.1 mm	0.24 in	Male Pin	30 Áin	0.76 Ám	Through Hole Right Angle	2.84 mm	0.112 in	40	0.1 in	2.54 mm	Tin			Black	2	Square	Copper Alloy	1.75 A	All	8.64 mm	0.34 in	Solder	Header	Gold	200 µin	5.08 µm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	Latch Lock/Eject Hooks Short	105 ░C	-55 °C	Shrouded - 4 Wall
3M (TC) N3432-1002RB	Board to Board Cable	UL94 V-0	6.1 mm	0.24 in	Male Pin	30 Áin	0.76 Ám	Through Hole Right Angle	2.84 mm	0.112 in	40	0.1 in	2.54 mm	Tin			Black	2	Square	Copper Alloy	1.75 A	All	7.87 mm	0.31 in	Solder	Header	Gold	200 µin	5.08 µm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	Push-Pull	105 ░C	-55 °C	Shrouded - 3 Wall
3M (TC) N3432-5203RB	Board to Board Cable	UL94 V-0	6.1 mm	0.24 in	Male Pin	30 Áin	0.76 Ám	Through Hole Right Angle	3.94 mm	0.155 "	40	0.1 in	2.54 mm	Tin			Black	2	Square	Copper Alloy	1.75 A	All	8.64 mm	0.34 in	Solder	Header	Gold	200 µin	5.08 µm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	Latch Lock/Eject Hooks Short	105 ░C	-55 °C	Shrouded - 4 Wall
3M (TC) N3432-6203	Board to Board Cable	UL94 V-0	6.1 mm	0.24 in	Male Pin	30 Áin	0.76 Ám	Through Hole	3.94 mm	0.155 "	40	0.1 in	2.54 mm	Tin-Lead	0.695 in	17.65 mm	Black	2	Square	Copper Alloy	1.75 A	All	17.27 mm	0.68 in	Solder	Header	Gold	200 µin	5.08 µm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	Latch Lock/Eject Hooks Short	105 ░C	-55 °C	Shrouded - 4 Wall

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.70
		10	$ 6.06
		200	$ 5.30
		600	$ 4.46
		1000	$ 3.91
Newark	Each	100	$ 6.00
		250	$ 5.50
		500	$ 5.11
		1000	$ 4.80

Description

General part information

N3432 Series

Connector Header Through Hole, Right Angle 40 position 0.100" (2.54mm)
