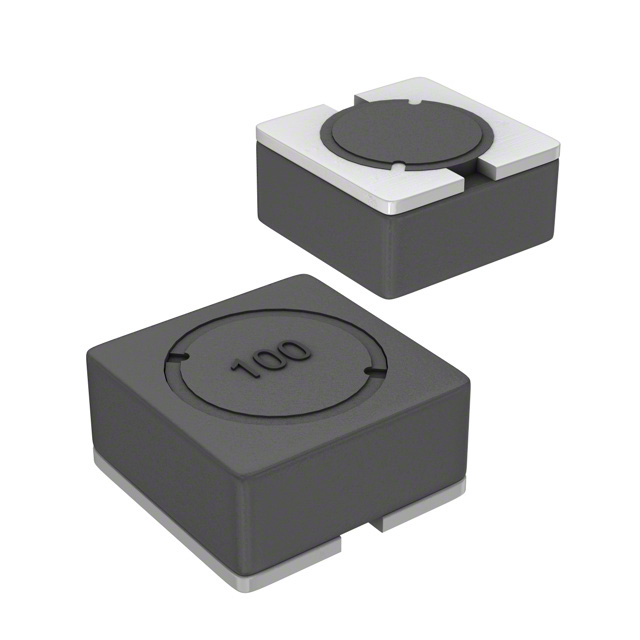

SRR5028-151Y

Active

Bourns Inc.

IND5.8X5.8X2.8MM,150UH30%0.33A,SHDSMD /TAPE & REEL - 7" REEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SRR5028 Series Spec

SRR5028-151Y

Active

Bourns Inc.

IND5.8X5.8X2.8MM,150UH30%0.33A,SHDSMD /TAPE & REEL - 7" REEL

Deep-Dive with AI

DocumentsDatasheet SRR5028 Series Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRR5028-151Y

Current - Saturation (Isat)	350 mA
Current Rating (Amps)	0.33 A
Frequency - Self Resonant	7.5 MHz
Height - Seated (Max)	3 mm
Height - Seated (Max) [Max]	0.118 in
Inductance	150 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	796 kHz, 7
Shielding	Shielded
Size / Dimension [x]	0.228 in
Size / Dimension [x]	5.8 mm
Size / Dimension [y]	0.228 in
Size / Dimension [y]	5.8 mm
Tolerance	30 %
Type	Wirewound, Drum Core

SRR5028 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Inductance	Mounting Type	Frequency - Self Resonant	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max)	Height - Seated (Max) [Max]	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Current - Saturation (Isat)	Material - Core	Current Rating (Amps)	Shielding	Type	Q @ Freq	DC Resistance (DCR)
Bourns Inc. SRR5028-470Y	125 °C	-40 °C	30 %	47 µH	Surface Mount	13 MHz	Nonstandard	0.228 in	0.228 in	5.8 mm	5.8 mm	3 mm	0.118 in	100 kHz	250 mOhm	650 mA	Ferrite	820 mA	Shielded	Drum Core Wirewound	2.52 MHz 7
Bourns Inc. SRR5028-6R2Y	125 °C	-40 °C	30 %	6.2 µH	Surface Mount	39 MHz	Nonstandard	0.228 in	0.228 in	5.8 mm	5.8 mm	3 mm	0.118 in	100 kHz		1.8 A	Ferrite	2.2 A	Shielded	Drum Core Wirewound	7 7.96 MHz	45 mOhm
Bourns Inc. SRR5028-100Y	125 °C	-40 °C	30 %	10 µH	Surface Mount	30 MHz	Nonstandard	0.228 in	0.228 in	5.8 mm	5.8 mm	3 mm	0.118 in	100 kHz	70 mOhm	1.4 A	Ferrite	1.5 A	Shielded	Drum Core Wirewound	2.52 MHz 9
Bourns Inc. SRR5028-331Y	125 °C	-40 °C	30 %	330 µH	Surface Mount	5 MHz	Nonstandard	0.228 in	0.228 in	5.8 mm	5.8 mm	3 mm	0.118 in	100 kHz	2 Ohm	200 mA	Ferrite	0.2 A	Shielded	Drum Core Wirewound	8 796 kHz
Bourns Inc. SRR5028-151Y	125 °C	-40 °C	30 %	150 µH	Surface Mount	7.5 MHz	Nonstandard	0.228 in	0.228 in	5.8 mm	5.8 mm	3 mm	0.118 in	100 kHz		350 mA	Ferrite	0.33 A	Shielded	Drum Core Wirewound	7 796 kHz
Bourns Inc. SRR5028-120Y	125 °C	-40 °C	30 %	12 µH	Surface Mount	28 MHz	Nonstandard	0.228 in	0.228 in	5.8 mm	5.8 mm	3 mm	0.118 in	100 kHz	80 mOhm	1.25 A	Ferrite	1.46 A	Shielded	Drum Core Wirewound	2.52 MHz 11
Bourns Inc. SRR5028-221Y	125 °C	-40 °C	30 %	220 µH	Surface Mount	6.5 MHz	Nonstandard	0.228 in	0.228 in	5.8 mm	5.8 mm	3 mm	0.118 in	100 kHz	1.25 Ohm		Ferrite	300 mA	Shielded	Drum Core Wirewound	7 796 kHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.78
		10	$ 0.67
		25	$ 0.61
		50	$ 0.56
		100	$ 0.50
	Digi-Reel®	1	$ 0.78
		10	$ 0.67
		25	$ 0.61
		50	$ 0.56
		100	$ 0.50
	Tape & Reel (TR)	400	$ 0.47
		800	$ 0.38
		1200	$ 0.36
		2800	$ 0.35
		10000	$ 0.32
Newark	Each (Supplied on Full Reel)	1	$ 0.39
		5000	$ 0.38
		10000	$ 0.35
		20000	$ 0.33
		30000	$ 0.30
		50000	$ 0.29

Description

General part information

SRR5028 Series

150 µH Shielded Drum Core, Wirewound Inductor 330 mA 900mOhm Max Nonstandard

Documents

Technical documentation and resources

Datasheet

SRR5028 Series Spec

Datasheet
