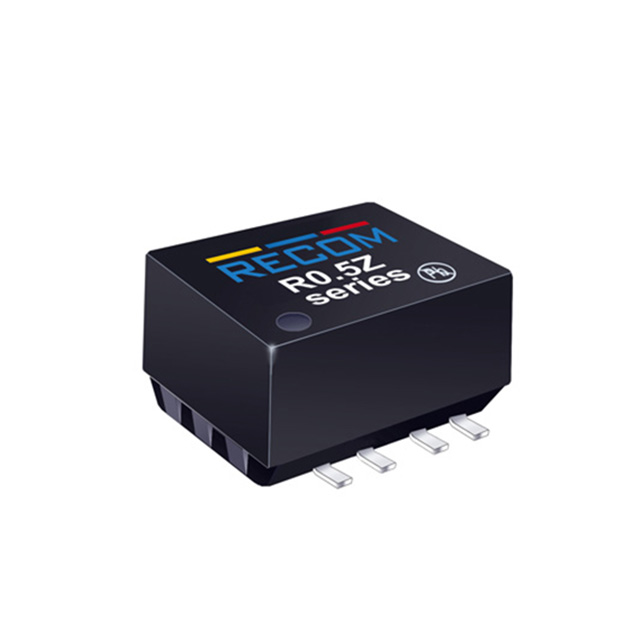

R0.5Z-1505/H

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 0.5W 15VIN 05VOUT CONV DC/DC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

R0.5Z-1505/H

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 0.5W 15VIN 05VOUT CONV DC/DC

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R0.5Z-1505/H

Applications	ITE (Commercial), Medical
Current - Output (Max) [Max]	100 mA
Efficiency	55 %
Features	SCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	10-SMD Module, 6 Leads
Power (Watts)	0.5 W
Size / Dimension [x]	15.2 mm
Size / Dimension [x]	0.6 in
Size / Dimension [y]	10.7 mm
Size / Dimension [y]	0.42 "
Size / Dimension [z]	0.28 "
Size / Dimension [z]	7 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	15.75 V
Voltage - Input (Min) [Min]	14.25 V
Voltage - Isolation	2000 V
Voltage - Output 1	5 V

R0.5Z-1505 Series

Isolated DC/DC Converters - SMD 0.5W 05VIN 12VOUT CONV DC/DC

Part	Number of Outputs	Current - Output (Max) [Max]	Type	Features	Voltage - Input (Max) [Max]	Efficiency	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Package / Case	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Mounting Type	Voltage - Isolation
RECOM Power R0.5Z-1515	1	33 mA	Isolated Module	SCP	15.75 V	62 %	0.5 W	100 °C	-40 °C	ITE (Commercial)	10-SMD Module 6 Leads	14.25 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	15 V	Surface Mount	1000 V
RECOM Power R0.5Z-2412/P-R	1	42 mA	Isolated Module	SCP	25.2 V	60 %	0.5 W	100 °C	-40 °C	ITE (Commercial)	10-SMD Module 6 Leads	22.8 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	12 V	Surface Mount	1000 V
RECOM Power R0.5Z-2412/HP-R	1	42 mA	Isolated Module	SCP	25.2 V	64 %	0.5 W	85 °C	-40 °C	ITE (Commercial) Medical	10-SMD Module 6 Leads	22.8 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	12 V	Surface Mount	2000 V
RECOM Power R0.5Z-1205/HP-R	1	100 mA	Isolated Module	SCP	12.6 V	60 %	0.5 W	85 °C	-40 °C	ITE (Commercial) Medical	10-SMD Module 6 Leads	11.4 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	5 V	Surface Mount	2000 V
RECOM Power R0.5Z-1515/H-R	1	33 mA	Isolated Module	SCP	15.75 V	66 %	0.5 W	85 °C	-40 °C	ITE (Commercial) Medical	10-SMD Module 6 Leads	14.25 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	15 V	Surface Mount	2000 V
RECOM Power R0.5Z-1515/P	1	33 mA	Isolated Module	SCP	15.75 V	62 %	0.5 W	100 °C	-40 °C	ITE (Commercial)	10-SMD Module 6 Leads	14.25 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	15 V	Surface Mount	1000 V
RECOM Power R0.5Z-1215/H	1	33 mA	Isolated Module	SCP	12.6 V	66 %	0.5 W	85 °C	-40 °C	ITE (Commercial) Medical	10-SMD Module 6 Leads	11.4 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	15 V	Surface Mount	2000 V
RECOM Power R0.5Z-1505/H	1	100 mA	Isolated Module	SCP	15.75 V	55 %	0.5 W	85 °C	-40 °C	ITE (Commercial) Medical	10-SMD Module 6 Leads	14.25 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	5 V	Surface Mount	2000 V
RECOM Power R0.5Z-0515/H-R	1	33 mA	Isolated Module		5.25 V	62 %	0.5 W	85 °C	-40 °C	ITE (Commercial) Medical	10-SMD Module 6 Leads	4.75 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	15 V	Surface Mount	2000 V
RECOM Power R0.5Z-2412/P	1	42 mA	Isolated Module	SCP	25.2 V	60 %	0.5 W	100 °C	-40 °C	ITE (Commercial)	10-SMD Module 6 Leads	22.8 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	12 V	Surface Mount	1000 V
