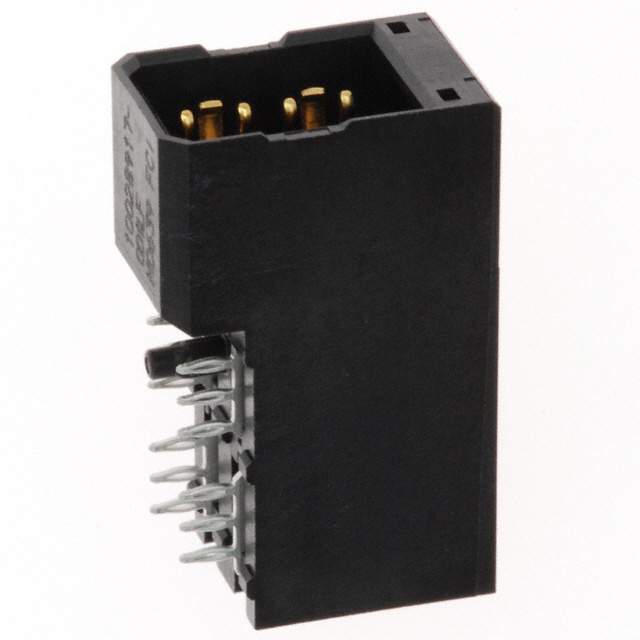

10028917-001LF

Active

Amphenol ICC (FCI)

CONN HEADER BLADE PWR 4P EDGE MT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HEADER BLADE PWR 4P EDGE MT

Technical Specifications

Parameters and characteristics for this part

Specification	10028917-001LF

Color	Black
Connector Style	Blade Power
Connector Type	Male Blades, Header
Connector Usage	Daughtercard
Contact Finish	GXT™, Gold or Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical	4 Power
Features	Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Termination	Press-Fit

Part	Number of Positions	Material Flammability Rating	Connector Type	Voltage Rating	Contact Layout, Typical	Number of Columns	Connector Usage	Connector Style	Color	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current Rating (Amps)	Features	Termination	Number of Rows	Number of Positions Loaded	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (FCI) 10028917-001	4	UL94 V-0	Header Male Blades	150 VDC	4 Power	2	Backplane	Blade Power	Black	Gold or Gold GXT™	85 °C	-55 °C	Board Edge Right Angle Through Hole	80 A	Board Guide	Press-Fit	2	All	0.76 Ám	30 Áin
Amphenol ICC (FCI) 10028917-001LF	4	UL94 V-0	Header Male Blades		4 Power		Daughtercard	Blade Power	Black	Gold or Gold GXT™			Board Edge Right Angle Through Hole		Board Guide	Press-Fit	2	All	0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Connector Header, Male Blades Board Edge, Through Hole, Right Angle Black Blade Power
