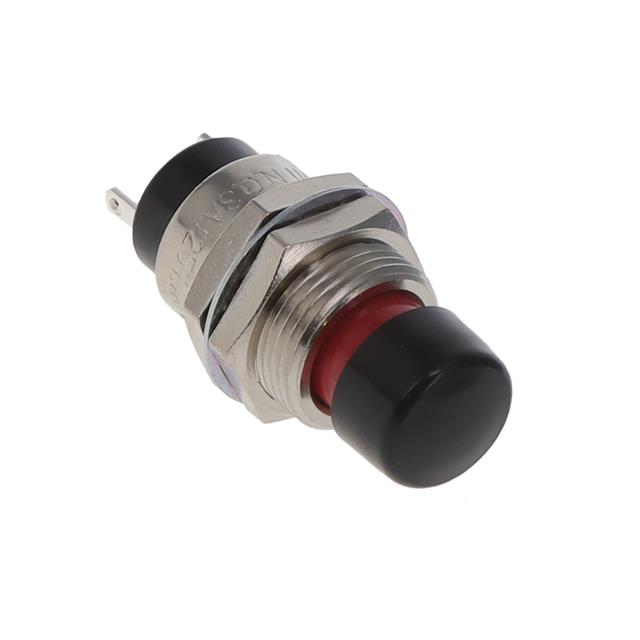

SB4011NOHC-2A
ActiveNKK Switches
SWITCH PUSH SPST-NO 3A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SB4011NOHC-2A
ActiveNKK Switches
SWITCH PUSH SPST-NO 3A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SB4011NOHC-2A |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 2 A, 3 A |
| Electrical Life | 10000 Cycles |
| Features | Epoxy Sealed Terminals |
| Mechanical Life | 30000 Steps |
| Mounting Type | Panel Mount, Rear |
| Operating Temperature [Max] [custom] | 158 °F |
| Operating Temperature [Min] [custom] | -10 °C |
| Panel Cutout Dimensions [diameter] | 12.5 mm |
| Switch Function | Off-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
SB4011 Series
| Part | Voltage Rating - DC | Type | Switch Function | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | Termination Style | Mounting Type | Actuator Type | Electrical Life | Features | Color - Actuator/Cap | Current Rating (Amps) | Actuator Marking | Voltage Rating - AC | Panel Cutout Dimensions [diameter] | Circuit | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | 30 V | Standard | On-Mom | -10 °C | 158 °F | Solder Lug | Panel Mount Rear | Button Round | 10000 Cycles | Epoxy Sealed Terminals | Red | 2 A 3 A | No Marking | 125 V | 12.5 mm | SPST-NC | 30000 Steps | ||
NKK Switches | 28 V | Standard | Off-Mom | -10 °C | 158 °F | Solder Lug | Panel Mount Rear | Button Round | 10000 Cycles | Epoxy Sealed Terminals | Green | 0.4 VA | No Marking | 28 V | 12.5 mm | SPST-NO | 30000 Steps | ||
NKK Switches | 28 V | Standard | Off-Mom | -10 °C | 158 °F | Solder Lug | Panel Mount Rear | Button Round | 10000 Cycles | Epoxy Sealed Terminals | White | 0.4 VA | No Marking | 28 V | 12.5 mm | SPST-NO | 30000 Steps | ||
NKK Switches | 30 V | Standard | Off-Mom | -10 °C | 158 °F | Solder Lug | Panel Mount Rear | Button Round | 10000 Cycles | Epoxy Sealed Terminals | Yellow | 2 A 3 A | No Marking | 125 V | 12.5 mm | SPST-NO | 30000 Steps | ||
NKK Switches | 28 V | Standard | Off-Mom | -10 °C | 158 °F | Solder Lug | Panel Mount Rear | Button Round | 10000 Cycles | Epoxy Sealed Terminals | Red | 0.4 VA | No Marking | 28 V | 12.5 mm | SPST-NO | 30000 Steps | ||
NKK Switches | 30 V | Standard | On-Mom | -10 °C | 158 °F | Solder Lug | Panel Mount Rear | Plunger for Cap | 10000 Cycles | Epoxy Sealed Terminals | Red | 2 A 3 A | No Marking | 125 V | 12.5 mm | SPST-NC | 30000 Steps | ||
NKK Switches | 30 V | Standard | Off-Mom | -10 °C | 158 °F | Solder Lug | Panel Mount Rear | Button Round | 10000 Cycles | Epoxy Sealed Terminals | Black | 2 A 3 A | No Marking | 125 V | 12.5 mm | SPST-NO | 30000 Steps | ||
NKK Switches | 30 V | Standard | On-Mom | Solder Lug | Panel Mount Rear | Plunger for Cap | 10000 Cycles | Epoxy Sealed Terminals | Red | 2 A 3 A | No Marking | 125 V | 12.5 mm | SPST-NC | 30000 Steps | 70 °C | -10 °C | ||
NKK Switches | 30 V | Standard | Off-Mom | -10 °C | 158 °F | Solder Lug | Panel Mount Rear | Plunger for Cap | 10000 Cycles | 2 A 3 A | No Marking | 125 V | 12.5 mm | SPST-NO | 30000 Steps | ||||
NKK Switches | 30 V | Standard | Off-Mom | -10 °C | 158 °F | Solder Lug | Panel Mount Rear | Plunger for Cap | 10000 Cycles | Epoxy Sealed Terminals | Red | 2 A 3 A | No Marking | 125 V | 12.5 mm | SPST-NO | 30000 Steps |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SB4011 Series
Pushbutton Switch SPST-NO Standard Panel Mount, Rear
