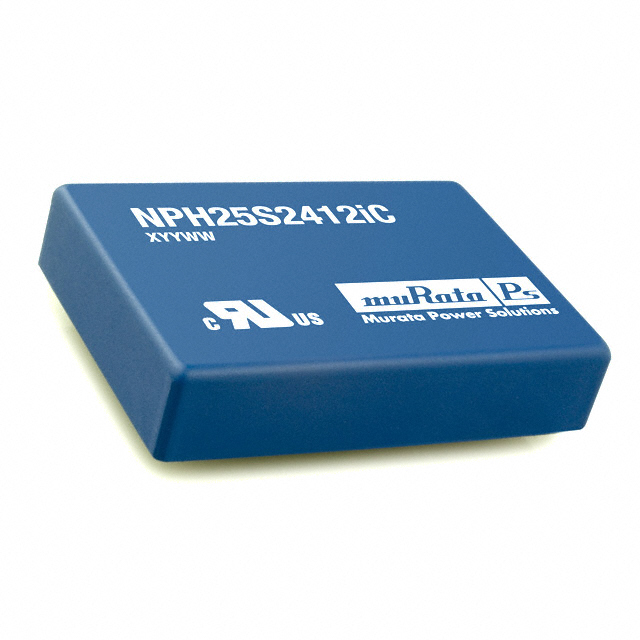

NPH25S2412IC

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 12.1V 25W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 12.1V 25W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output 1	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Efficiency	Voltage - Isolation	Applications	Type	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Power (Watts)	Number of Outputs
Murata Power Solutions Inc. NPH25S2415IC	15.1 V	36 V	-40 °C	110 °C	Through Hole	6-DIP Module	87 %	1.5 kV	ITE (Commercial)	Isolated Module	1.7 A	18 V	0.39 in	50 mm	9.9 mm	1.97 "	1.38 "	35.1 mm	25 W	1
Murata Power Solutions Inc. NPH25S2405IC	5.1 V	36 V	-40 °C	110 °C	Through Hole	6-DIP Module	84 %	1.5 kV	ITE (Commercial)	Isolated Module	5 A	18 V	0.39 in	50 mm	9.9 mm	1.97 "	1.38 "	35.1 mm	25 W	1
Murata Power Solutions Inc. NPH25S2412IC	12.1 V	36 V	-40 °C	110 °C	Through Hole	6-DIP Module	86 %	1.5 kV	ITE (Commercial)	Isolated Module	2.1 A	18 V	0.39 in	50 mm	9.9 mm	1.97 "	1.38 "	35.1 mm	25 W	1
Murata Power Solutions Inc. NPH25S2412EIC	12.1 V	36 V	-40 °C	110 °C	Through Hole	6-DIP Module	86 %	1.5 kV	ITE (Commercial)	Isolated Module	2.1 A	18 V	0.39 in	50 mm	9.9 mm	1.97 "	1.38 "	35.1 mm	25 W	1
Murata Power Solutions Inc. NPH25S2403IC	3.4 V	36 V	-40 °C	110 °C	Through Hole	6-DIP Module	81 %	1.5 kV	ITE (Commercial)	Isolated Module	7.3 A	18 V	0.39 in	50 mm	9.9 mm	1.97 "	1.38 "	35.1 mm	25 W	1
Murata Power Solutions Inc. NPH25S2415EIC	15.1 V	36 V	-40 °C	110 °C	Through Hole	6-DIP Module	87 %	1.5 kV	ITE (Commercial)	Isolated Module	1.7 A	18 V	0.39 in	50 mm	9.9 mm	1.97 "	1.38 "	35.1 mm	25 W	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 12.1V 2.1A 18V - 36V Input

Technical documentation and resources
