XS3A1T5157GSH
ActiveFreescale Semiconductor - NXP
LOW-OHMIC SINGLE-POLE DOUBLE-THROW ANALOG SWITCH
Deep-Dive with AI
Search across all available documentation for this part.
XS3A1T5157GSH
ActiveFreescale Semiconductor - NXP
LOW-OHMIC SINGLE-POLE DOUBLE-THROW ANALOG SWITCH
Technical Specifications
Parameters and characteristics for this part
| Specification | XS3A1T5157GSH |
|---|---|
| -3db Bandwidth | 40 MHz |
| Channel Capacitance (CS(off), CD(off)) [custom] | 35 pF |
| Channel Capacitance (CS(off), CD(off)) [custom] | 35 pF |
| Channel-to-Channel Matching (ΔRon) | 100 mOhm |
| Charge Injection | 15 pC |
| Current - Leakage (IS(off)) (Max) | 10 nA |
| Mounting Type | Surface Mount |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) [Max] | 900 mOhm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-XFDFN |

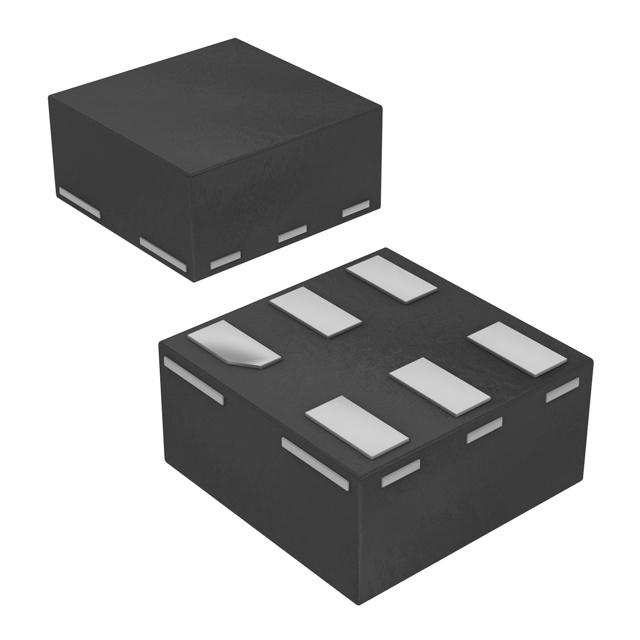

| Supplier Device Package | 6-XSON, SOT1202 (1x1) |
| Switch Circuit | SPDT |
| Switch Time (Ton, Toff) (Max) [custom] | 20 ns |
| Switch Time (Ton, Toff) (Max) [custom] | 40 ns |
| Voltage - Supply, Single (V+) [Max] | 4.3 V |
| Voltage - Supply, Single (V+) [Min] | 1.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.38 | |
| 10 | $ 0.30 | |||
| 25 | $ 0.28 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.12 | |||
| 2500 | $ 0.11 | |||
| Digi-Reel® | 1 | $ 0.38 | ||
| 10 | $ 0.30 | |||
| 25 | $ 0.28 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.12 | |||
| 2500 | $ 0.11 | |||
| Tape & Reel (TR) | 5000 | $ 0.10 | ||
| 10000 | $ 0.09 | |||
| 25000 | $ 0.09 | |||
| 50000 | $ 0.08 | |||
Description
General part information
XS3A1T5157GS Series
The XS3A1T5157 is a low-ohmic single-pole double-throw analog switch suitable for use as an analog or digital 2:1 multiplexer/demultiplexer. It has a digital select input (S), two independent inputs/outputs (Y1 and Y2) and a common input/output (Z).
