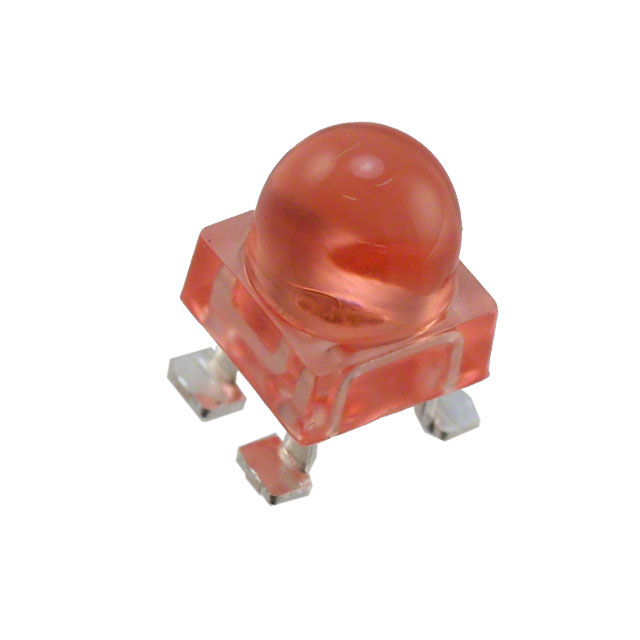

ALMD-EG1E-Z2002
ActiveBroadcom Limited
LED RED RND 15DEG SMD
Deep-Dive with AI
Search across all available documentation for this part.
ALMD-EG1E-Z2002
ActiveBroadcom Limited
LED RED RND 15DEG SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ALMD-EG1E-Z2002 |
|---|---|
| Color | Red |
| Current - Test | 20 mA |
| Height (Max) [Max] | 7.3 mm |
| Lens Color | Red |
| Lens Style | Round with Domed Top |
| Millicandela Rating | 19500 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Size / Dimension [x] | 4.2 mm |
| Size / Dimension [y] | 4.2 mm |
| Viewing Angle | 15 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Dominant | 621 nm |
| Wavelength - Peak | 630 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.05 | |
| 10 | $ 0.69 | |||
| 100 | $ 0.45 | |||
| Digi-Reel® | 1 | $ 1.05 | ||
| 10 | $ 0.69 | |||
| 100 | $ 0.45 | |||
| Tape & Reel (TR) | 1000 | $ 0.35 | ||
| 2000 | $ 0.33 | |||
| 5000 | $ 0.32 | |||
| 10000 | $ 0.31 | |||
| 25000 | $ 0.31 | |||
Description
General part information
ALMD-EG1 Series
Red 621nm LED Indication - Discrete 2.1V 4-SMD, Gull Wing
Documents
Technical documentation and resources
No documents available
