BG0903-B047-00S-00

Obsolete

NMB TECHNOLOGIES

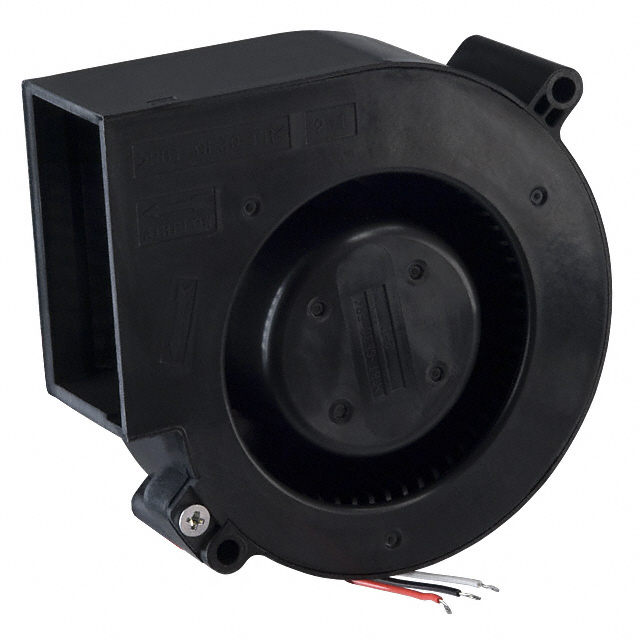

FAN BLOWER 97X33MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet BG Series Part Numbering Guide +2

BG0903-B047-00S-00

Obsolete

NMB TECHNOLOGIES

FAN BLOWER 97X33MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet BG Series Part Numbering Guide +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BG0903-B047-00S-00

Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	1.6 A
Fan Type	Blower
Features	Speed Sensor (Tach)
Lifetime @ Temp.	100000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	19.2 W
RPM	5200 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	97 mm
Size / Dimension [z]	93.5 mm
Static Pressure	1.935 in H2O
Static Pressure	482 Pa
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	12.6 VDC
Voltage Range [Min]	10.8 VDC
Weight	210.01 g
Weight	0.463 lb
Width [y]	33 mm

BG0903 Series

Part	Bearing Type	Current Rating (Amps)	RPM	Voltage - Rated	Material - Frame	Static Pressure	Static Pressure	Voltage Range [Min]	Voltage Range [Max]	Weight	Weight	Fan Type	Features	Approval Agency	Material - Blade	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Noise	Air Flow	Air Flow	Termination	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Width [y]	Lifetime @ Temp.
NMB TECHNOLOGIES BG0903-B043-00L-00	Ball	0.64 A	3200 RPM	12 VDC	Plastic	0.903 in H2O	225 Pa	8 VDC	13.8 VDC	210.01 g	0.463 lb	Blower	Locked Rotor Sensor	CE CSA UL VDE	Plastic	-10 °C	-10 °C	60 °C	60 °C	51.5 dB	0.692 mł/min	24.7 CFM	3 Wire Leads	Rectangular/Rounded	97 mm	93.5 mm	7.68 W	33 mm	100000 Hrs
NMB TECHNOLOGIES BG0903-B044-00S-00	Ball	1.03 A	3700 RPM	12 VDC	Plastic	1.373 in H2O	342 Pa	8 VDC	12.8 VDC	210.01 g	0.463 lb	Blower	Speed Sensor (Tach)	CE CSA UL VDE	Plastic	-10 °C	-10 °C	60 °C	60 °C	54.5 dB	0.801 m³/min	28.6 CFM	3 Wire Leads	Rectangular/Rounded	97 mm	93.5 mm	12.4 W	33 mm	100000 Hrs
NMB TECHNOLOGIES BG0903-B053-000-00	Ball	0.33 A	3200 RPM	24 VDC	Plastic	0.9 in H2O	224.2 Pa	10 VDC	27.6 VDC	210.01 g	0.463 lb	Blower		CE CSA UL VDE	Plastic	-10 °C	-10 °C	60 °C	60 °C	51.5 dB	0.692 mł/min	24.7 CFM	2 Wire Leads	Rectangular/Rounded	97 mm	93.5 mm	7.92 W	33 mm	100000 Hrs
NMB TECHNOLOGIES BG0903-B044-000-00	Ball	1.03 A	3700 RPM	12 VDC	Plastic	1.373 in H2O	342 Pa	8 VDC	12.8 VDC	210.01 g	0.463 lb	Blower		CE CSA UL VDE	Plastic	-10 °C	-10 °C	60 °C	60 °C	54.5 dB	0.801 m³/min	28.6 CFM	2 Wire Leads	Rectangular/Rounded	97 mm	93.5 mm	12.4 W	33 mm	100000 Hrs
NMB TECHNOLOGIES BG0903-B054-00L-00	Ball	490 mA	3700 RPM	24 VDC	Plastic	1.373 in H2O	342 Pa	10 VDC	25 VDC	210.01 g	0.463 lb	Blower	Locked Rotor Sensor	CE CSA UL VDE	Plastic	-10 °C	-10 °C	60 °C	60 °C	54.5 dB	0.801 m³/min	28.6 CFM	3 Wire Leads	Rectangular/Rounded	97 mm	93.5 mm	11.8 W	33 mm	100000 Hrs
NMB TECHNOLOGIES BG0903-B042-00S-00	Ball	400 mA	2700 RPM	12 VDC	Plastic			8 VDC	13.8 VDC	210.01 g	0.463 lb	Blower	Speed Sensor (Tach)	CE CSA UL VDE	Plastic	-10 °C	-10 °C	60 °C	60 °C	47.5 dB	0.574 m³/min	20.5 CFM	3 Wire Leads	Rectangular/Rounded	97 mm	93.5 mm	4.8 W	33 mm	100000 Hrs
NMB TECHNOLOGIES BG0903-B043-000-00	Ball	0.64 A	3200 RPM	12 VDC	Plastic	0.9 in H2O	224.2 Pa	8 VDC	13.8 VDC	210.01 g	0.463 lb	Blower		CE CSA UL VDE	Plastic	-10 °C	-10 °C	60 °C	60 °C	51.5 dB	0.692 mł/min	24.7 CFM	2 Wire Leads	Rectangular/Rounded	97 mm	93.5 mm	7.68 W	33 mm	100000 Hrs
NMB TECHNOLOGIES BG0903-B052-000-00	Ball	0.21 A	2700 RPM	24 VDC	Plastic			10 VDC	27.6 VDC	210.01 g	0.463 lb	Blower		CE CSA UL VDE	Plastic	-10 °C	-10 °C	60 °C	60 °C	47.5 dB	0.574 m³/min	20.5 CFM	2 Wire Leads	Rectangular/Rounded	97 mm	93.5 mm	5.04 W	33 mm	100000 Hrs
NMB TECHNOLOGIES BG0903-B053-00L-00	Ball	0.33 A	3200 RPM	24 VDC	Plastic	0.903 in H2O	225 Pa	10 VDC	27.6 VDC	210.01 g	0.463 lb	Blower	Locked Rotor Sensor	CE CSA UL VDE	Plastic	-10 °C	-10 °C	60 °C	60 °C	51.5 dB	0.692 mł/min	24.7 CFM	3 Wire Leads	Rectangular/Rounded	97 mm	93.5 mm	7.92 W	33 mm	100000 Hrs
NMB TECHNOLOGIES BG0903-B047-00S-00	Ball	1.6 A	5200 RPM	12 VDC	Plastic	1.935 in H2O	482 Pa	10.8 VDC	12.6 VDC	210.01 g	0.463 lb	Blower	Speed Sensor (Tach)	CE CSA UL VDE	Plastic	-10 °C	-10 °C	60 °C	60 °C				3 Wire Leads	Rectangular/Rounded	97 mm	93.5 mm	19.2 W	33 mm	100000 Hrs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.38
		10	$ 19.06
		25	$ 18.21
		50	$ 17.59
		100	$ 16.99
		250	$ 16.23

Description

General part information

BG0903 Series

Fan Blower 12VDC Rectangular/Rounded - 97mm L x 93.5mm H Ball 38.1 CFM (1.07m³/min) 3 Wire Leads
