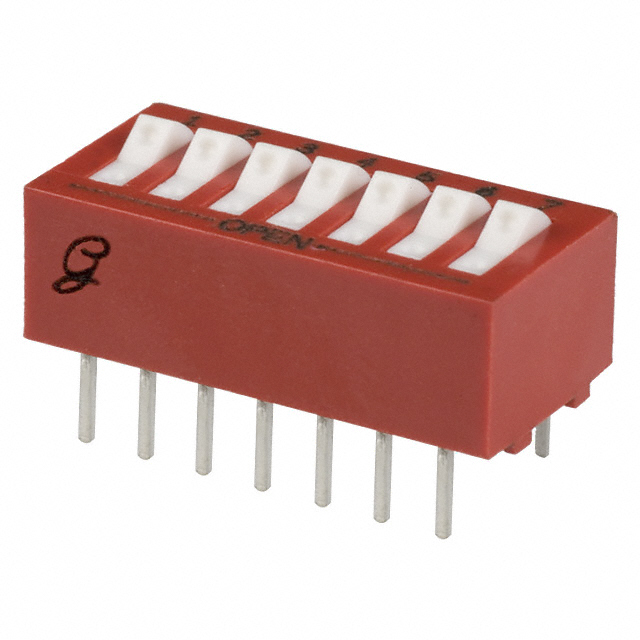

76SB07ST

Active

Grayhill Inc.

SWITCH ROCKER DIP SPST 0.15A 30V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH ROCKER DIP SPST 0.15A 30V

Technical Specifications

Parameters and characteristics for this part

Part	Length	Length	Height Above Board [z]	Height Above Board [z]	Mechanical Life	Termination Style	Electrical Life	Circuit	Number of Positions	Actuator Type	Actuator Level	Voltage Rating	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Pitch [x]	Pitch	Pitch [x]	Features	Contact Finish	Mounting Type	Length [x]	Length [x]
Grayhill Inc. 76SB08ST	22.35 mm	0.88 in	8 mm	0.315 in	2000 Cycles	PC Pin	2000 Steps	SPST	8	Rocker	Raised	30 VDC	Copper Alloy	85 °C	-40 °C	Thermoplastic	0.1 in	Full	2.54 mm	Tape Seal	Gold	Through Hole
Grayhill Inc. 76SB12ST	32.51 mm	1.28 in	8 mm	0.315 in	2000 Cycles	PC Pin	2000 Steps	SPST	12	Rocker	Raised	30 VDC	Copper Alloy	85 °C	-40 °C	Thermoplastic	0.1 in	Full	2.54 mm	Tape Seal	Gold	Through Hole
Grayhill Inc. 76SB07ST			8 mm	0.315 in	2000 Cycles	PC Pin	2000 Steps	SPST	7	Rocker	Raised	30 VDC	Copper Alloy	85 °C	-40 °C	Thermoplastic	0.1 in	Full	2.54 mm	Tape Seal	Gold	Through Hole
Grayhill Inc. 76SB06T			8 mm	0.315 in	2000 Cycles	PC Pin	2000 Steps	SPST	6	Rocker	Raised	30 VDC	Copper Alloy	85 °C	-40 °C	Thermoplastic	0.1 in	Full	2.54 mm		Gold	Through Hole	17.27 mm	0.68 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch SPST 7 Position Through Hole Rocker Actuator 150mA 30VDC

Technical documentation and resources
