172-E50-113R031

Active

MH Connectors

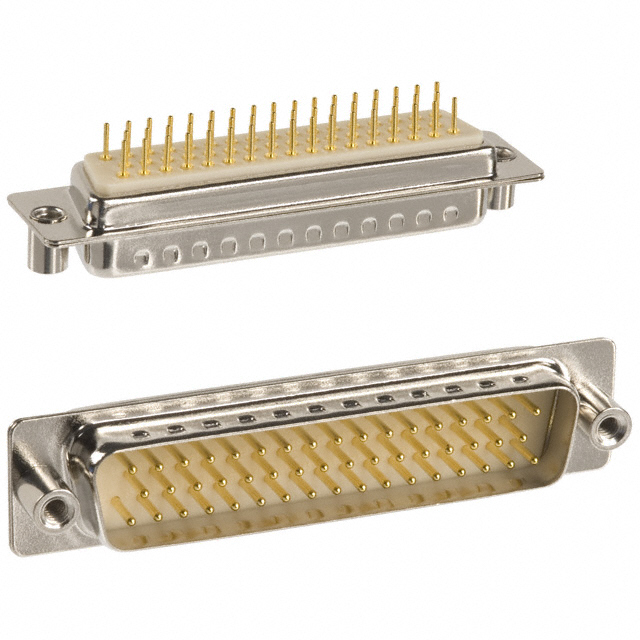

D SUB CONNECTOR, DB50, PLUG, 172-E M SERIES, 50 CONTACTS, DD, THROUGH HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBackshell Reference Guide Datasheet +4

172-E50-113R031

Active

MH Connectors

D SUB CONNECTOR, DB50, PLUG, 172-E M SERIES, 50 CONTACTS, DD, THROUGH HOLE

Deep-Dive with AI

DocumentsBackshell Reference Guide Datasheet +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	172-E50-113R031

Color	White
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Grounding Indents
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	50
Number of Rows	3
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	5
Termination	Solder

172-E50 Series

Part	Shell Material, Finish	Material Flammability Rating	Connector Type	Connector Style	Number of Positions	Current Rating (Amps)	Dielectric Material	Contact Finish Thickness	Contact Finish	Contact Material	Shell Size, Connector Layout	Number of Rows	Flange Feature	Contact Type	Features	Mounting Type	Termination	Color	Wire Gauge [Min]	Wire Gauge [Max]
MH Connectors 172-E50-201-911	Steel Yellow Chromate Plated	UL94 V-0	Receptacle Female Sockets	D-Sub	50	5 A	Polybutylene Terephthalate (PBT)	Flash	Gold	Brass	5	3	Cable Side (4-40) Mating Side Female Screwlock (4-40)	Signal
MH Connectors 172-E50-113R001	Nickel Plated Steel	UL94 V-0	Male Pins Plug	D-Sub	50	5 A	Polyamide (PA6T) Nylon 6T	Flash	Gold	Brass	5	3	Housing/Shell (Unthreaded)	Signal	Grounding Indents	Panel Mount Through Hole	Solder	White
MH Connectors 172-E50-111R011	Steel Yellow Chromate Plated	UL94 V-0	Male Pins Plug	D-Sub	50	5 A	Polyamide (PA6T) Nylon 6T	Flash	Gold	Brass	5	3	4-40 Board Side	Signal		Panel Mount Through Hole	Solder	White
MH Connectors 172-E50-212-011		UL94 V-0	Receptacle Female Sockets	D-Sub	50	5 A	Polybutylene Terephthalate (PBT)	Flash	Gold		5	3	4-40 Board Side	Signal		Panel Mount Through Hole	Solder	White
MH Connectors 172-E50-212-001		UL94 V-0	Receptacle Female Sockets	D-Sub	50	5 A	Polybutylene Terephthalate (PBT)	Flash	Gold		5	3	Housing/Shell (Unthreaded)	Signal		Panel Mount Through Hole	Solder	White
MH Connectors 172-E50-102-911		UL94 V-0	Male Pins Plug	D-Sub	50	5 A	Polybutylene Terephthalate (PBT)	Flash	Gold	Brass	5	3	Cable Side (4-40) Mating Side Female Screwlock (4-40)	Signal	Board Lock Grounding Indents			White
MH Connectors 172-E50-101-911	Steel Yellow Chromate Plated	UL94 V-0	Male Pins Plug	D-Sub	50	5 A	Polybutylene Terephthalate (PBT)	Flash	Gold	Brass	5	3	Cable Side (4-40) Mating Side Female Screwlock (4-40)	Signal				White
MH Connectors 172-E50-113R031	Nickel Plated Steel	UL94 V-0	Male Pins Plug	D-Sub	50	5 A	Polyamide (PA6T) Nylon 6T	Flash	Gold	Brass	5	3	4-40	Signal	Grounding Indents	Panel Mount Through Hole	Solder	White
MH Connectors 172-E50-212-031		UL94 V-0	Receptacle Female Sockets	D-Sub	50	5 A	Polybutylene Terephthalate (PBT)	Flash	Gold		5	3	4-40	Signal		Panel Mount Through Hole	Solder	White
MH Connectors 172-E50-202R011		UL94 V-0	Receptacle Female Sockets	D-Sub	50	5 A	Polybutylene Terephthalate (PBT)	Flash	Gold	Brass	5	3	Cable Side	Signal				White	20 AWG	26 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	240	$ 7.67
Newark	Each	100	$ 9.83
		500	$ 8.27
		1000	$ 7.28
		5000	$ 6.92

Description

General part information

172-E50 Series

50 Position D-Sub Plug, Male Pins Connector
