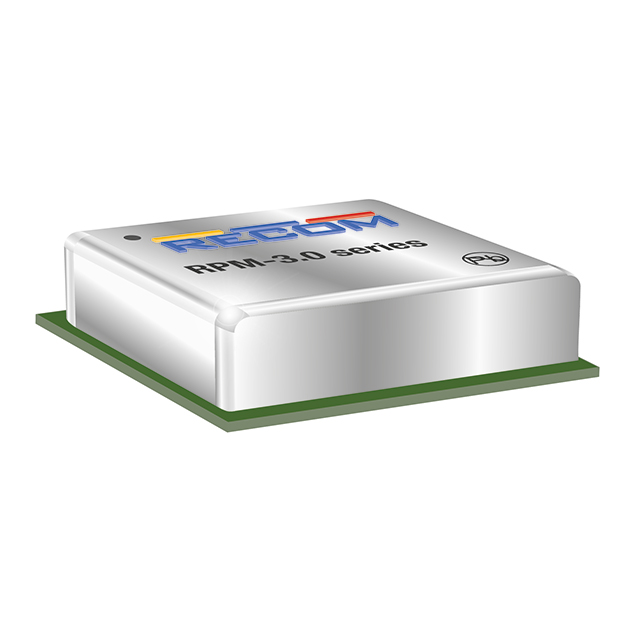

RPM5.0-3.0-CT
ActiveRECOM Power
NON ISOLATED POL DC/DC CONVERTER, ITE, MODULE, 1 OUTPUT, 15 W, 5 V, 3 A
Deep-Dive with AI
Search across all available documentation for this part.
RPM5.0-3.0-CT
ActiveRECOM Power
NON ISOLATED POL DC/DC CONVERTER, ITE, MODULE, 1 OUTPUT, 15 W, 5 V, 3 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RPM5.0-3.0-CT |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 3 A |
| Efficiency | 97 % |
| Features | OTP, UVLO, SCP, Remote On/Off, OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 25-BLGA Module |
| Size / Dimension [x] | 12.2 mm |
| Size / Dimension [x] | 0.48 in |
| Size / Dimension [y] | 0.48 in |
| Size / Dimension [y] | 12.2 mm |
| Size / Dimension [z] | 0.15 " |
| Size / Dimension [z] | 3.8 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 17 V |
| Voltage - Input (Min) [Min] | 3 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RPM-3.0 Series
Non-Isolated DC/DC Converters 3-17Vin 5.0Vout 3A
