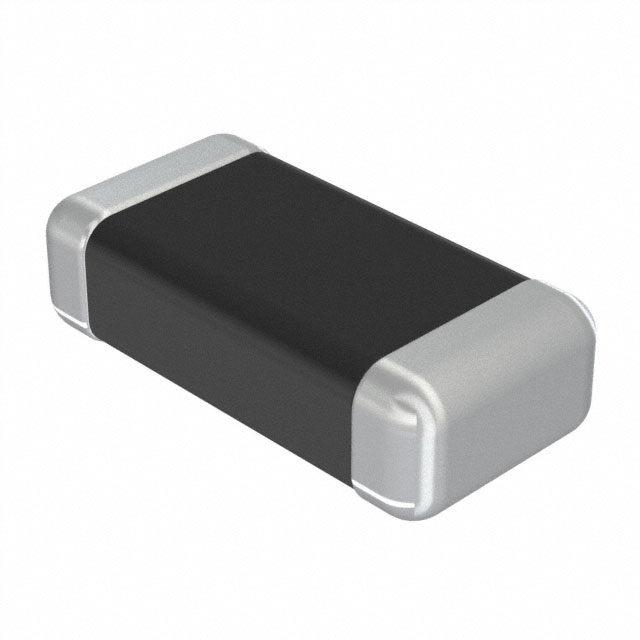

AMK316BJ107ML-T
TAIYO YUDEN
SMD MULTILAYER CERAMIC CAPACITOR, M SERIES, 100 ΜF, 4 V, 1206 [3216 METRIC], ± 20%, X5R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsProduct Change Notice EN
AMK316BJ107ML-T
TAIYO YUDEN
SMD MULTILAYER CERAMIC CAPACITOR, M SERIES, 100 ΜF, 4 V, 1206 [3216 METRIC], ± 20%, X5R
Deep-Dive with AI
DocumentsProduct Change Notice EN
Technical Specifications
Parameters and characteristics for this part
| Specification | AMK316BJ107ML-T |
|---|---|
| Applications | SMPS Filtering |
| Capacitance | 100 µF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 0.126 " |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Temperature Coefficient | X5R |
| Thickness (Max) | 1.8 mm |
| Thickness (Max) [Max] | 0.071 " |
| Tolerance | 20 % |
| Voltage - Rated | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.67 | |
| 10 | $ 0.47 | |||
| 50 | $ 0.40 | |||
| 100 | $ 0.32 | |||
| 500 | $ 0.27 | |||
| 1000 | $ 0.23 | |||
| Digi-Reel® | 1 | $ 0.67 | ||
| 10 | $ 0.47 | |||
| 50 | $ 0.40 | |||
| 100 | $ 0.32 | |||
| 500 | $ 0.27 | |||
| 1000 | $ 0.23 | |||
| Tape & Reel (TR) | 2000 | $ 0.21 | ||
| 4000 | $ 0.20 | |||
| 10000 | $ 0.19 | |||
| 14000 | $ 0.19 | |||
| 50000 | $ 0.18 | |||
| Newark | Each (Supplied on Full Reel) | 1 | $ 0.25 | |
| 5000 | $ 0.24 | |||
| 10000 | $ 0.22 | |||
| 20000 | $ 0.21 | |||
| 30000 | $ 0.19 | |||
| 50000 | $ 0.18 | |||
Description
General part information
AMK316B Series
100 µF ±20% 4V Ceramic Capacitor X5R 1206 (3216 Metric)
