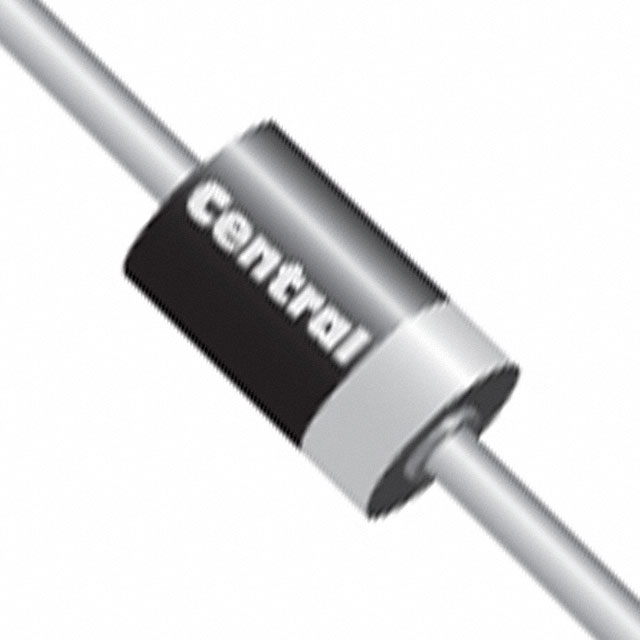

CZ5355B BK PBFREE
ActiveCentral Semiconductor Corp
DIODE ZENER 18V 5W DO201
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CZ5355B BK PBFREE
ActiveCentral Semiconductor Corp
DIODE ZENER 18V 5W DO201
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CZ5355B BK PBFREE |
|---|---|
| Current - Reverse Leakage @ Vr | 500 nA |
| Impedance (Max) (Zzt) [Max] | 2.5 Ohms |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | Axial, DO-27, DO-201AA |
| Power - Max [Max] | 5 W |
| Supplier Device Package | DO-201 |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V |
| Voltage - Zener (Nom) (Vz) | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2000 | $ 0.42 | |
Description
General part information
CZ5355 Series
Zener Diode 18 V 5 W ±5% Through Hole DO-201
Documents
Technical documentation and resources
