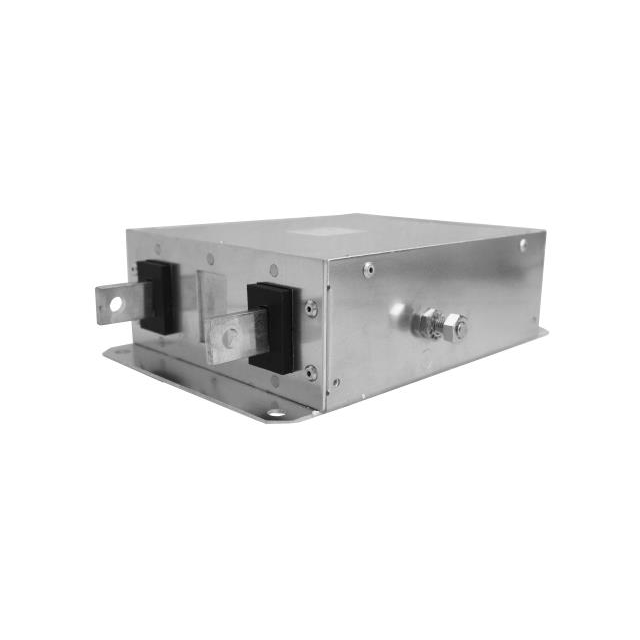

RP680-1000-100-B

Active

Astrodyne TDI

LINE FILTER 250VAC 1KA CHASS MNT

Search across all available documentation for this part.

Active

Astrodyne TDI

LINE FILTER 250VAC 1KA CHASS MNT

Technical Specifications

Parameters and characteristics for this part

Specification	RP680-1000-100-B

Applications	General Purpose
Approval Agency	CSA, cURus, SEMKO, ENEC, CE
Configuration	Single Stage
Current	1 kA
Filter Type	DC
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Terminal Post
Voltage - Rated AC	250 V

Part	Applications	Termination Style	Current	Mounting Type	Filter Type	Approval Agency	Configuration	Voltage - Rated AC	Operating Temperature [custom]
Astrodyne TDI RP680-250-100-B	General Purpose	Terminal Post	250 A	Chassis Mount	DC	CE CSA cURus ENEC SEMKO	Single Stage	250 V	-25 °C 100 °C
Astrodyne TDI RP680-600-2000-B	General Purpose	Terminal Post	600 A	Chassis Mount	DC	CE CSA cURus ENEC SEMKO	Single Stage	250 V	-25 °C 100 °C
Astrodyne TDI RP680-800-2000-B	General Purpose	Terminal Post	800 A	Chassis Mount	DC	CE CSA cURus ENEC SEMKO	Single Stage	250 V	-25 °C 100 °C
Astrodyne TDI RP680-400-1000-B	General Purpose	Terminal Post	400 A	Chassis Mount	DC	CE CSA cURus ENEC SEMKO	Single Stage	250 V	-25 °C 100 °C
Astrodyne TDI RP680-400-2000-B	General Purpose	Terminal Post	400 A	Chassis Mount	DC	CE CSA cURus ENEC SEMKO	Single Stage	250 V	-25 °C 100 °C
Astrodyne TDI RP680-320-2000-B	General Purpose	Terminal Post	320 A	Chassis Mount	DC	CE CSA cURus ENEC SEMKO	Single Stage	250 V	-25 °C 100 °C
Astrodyne TDI RP680-1000-2000-B	General Purpose	Terminal Post	1 kA	Chassis Mount	DC	CE CSA cURus ENEC SEMKO	Single Stage	250 V	-25 °C 100 °C
Astrodyne TDI RP680-1000-100-B	General Purpose	Terminal Post	1 kA	Chassis Mount	DC	CE CSA cURus ENEC SEMKO	Single Stage	250 V	-25 °C 100 °C
Astrodyne TDI RP680-320-100-B	General Purpose	Terminal Post	320 A	Chassis Mount	DC	CE CSA cURus ENEC SEMKO	Single Stage	250 V	-25 °C 100 °C
Astrodyne TDI RP680-400-100-B	General Purpose	Terminal Post	400 A	Chassis Mount	DC	CE CSA cURus ENEC SEMKO	Single Stage	250 V	-25 °C 100 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DC EMC/EMI Line Filter 1 kA 250V Single Stage Terminal Post

Technical documentation and resources
