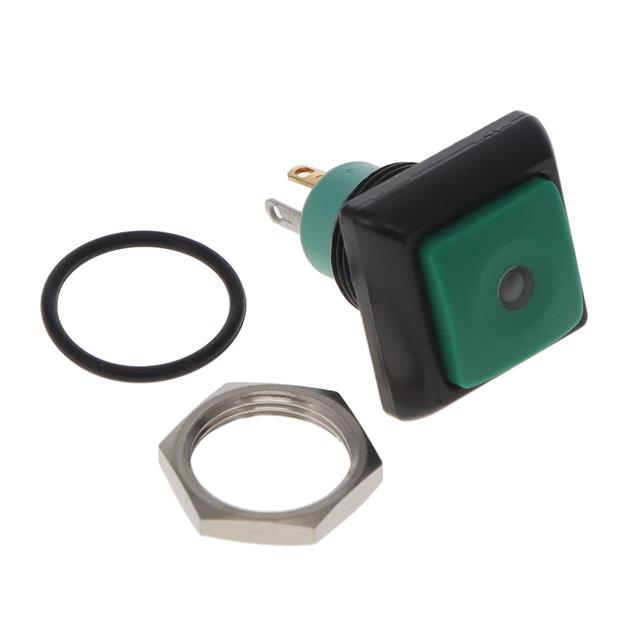

IPC3SAD3L0G

Active

APEM

PUSHBUTTON SWITCH FD DBLE ICON ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

APEM

PUSHBUTTON SWITCH FD DBLE ICON ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	IPC3SAD3L0G

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPST-NO
Color - Actuator/Cap	Green
Current Rating (Amps)	200 mA, 500 mA
Electrical Life	500000 Cycles
Features	Tactile Feedback
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	48 V
Voltage Rating - DC	48 V

Part	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Type	Illumination Voltage (Nominal)	Ingress Protection	Switch Function	Mounting Type	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Color - Actuator/Cap	Features	Electrical Life	Circuit	Voltage Rating - DC	Illumination Type, Color	Actuator Marking	Actuator Type
APEM IPC3SAD3L0G	13.6 mm	200 mA 500 mA	Illuminated Standard	2 VDC	IP67 - Dust Tight Waterproof	Off-Mom	Panel Mount Front	48 V	125 °C	-40 °C	Solder Lug	Green	Tactile Feedback	500000 Cycles	SPST-NO	48 V	Green LED	No Marking	Button Square

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
