Technical Specifications
Parameters and characteristics for this part
| Specification | 11_SK-50-2-56/119_NE |
|---|---|
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Cable Group | RG-405 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polyphenylene Ether (PPE) |
| Frequency - Max [Max] | 40 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 100.15 | |
| 10 | $ 91.91 | |||
| 25 | $ 88.37 | |||
| 50 | $ 85.42 | |||
| 100 | $ 80.71 | |||
Description
General part information
11_SK-50 Series

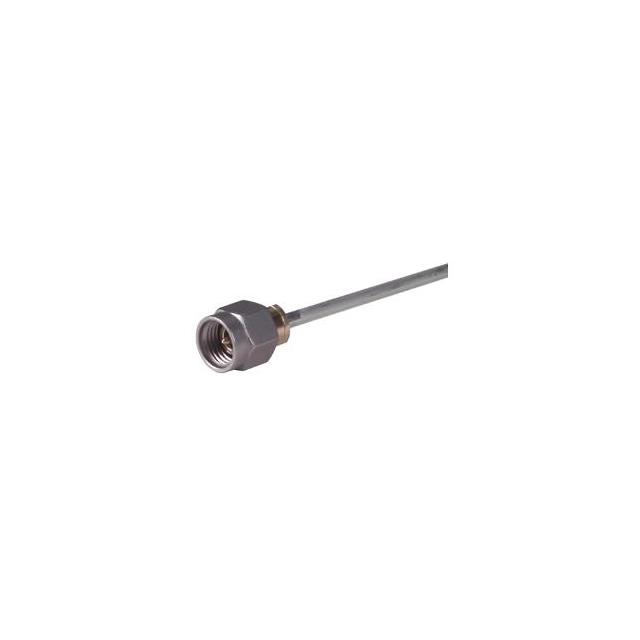

SK Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
