LR0204F5K1

Active

TE Connectivity Passive Product

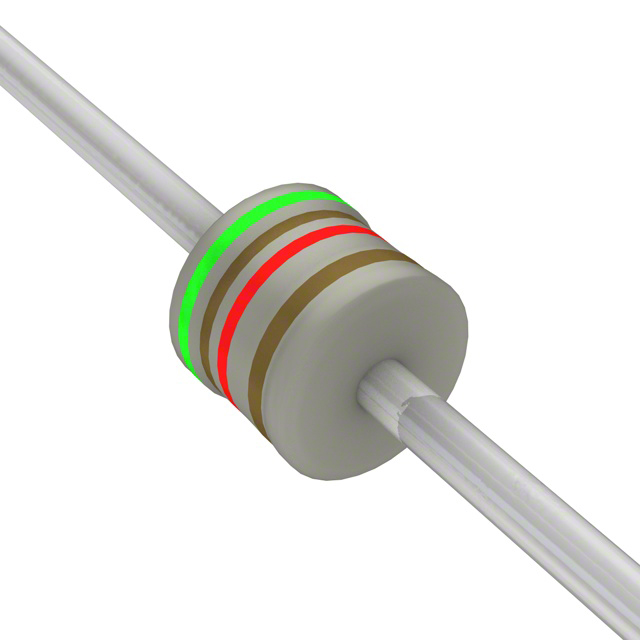

RES 5.1K OHM 1% 1/4W AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LR0204F5K1

Active

TE Connectivity Passive Product

RES 5.1K OHM 1% 1/4W AXIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LR0204F5K1

Composition	Metal Film
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Power (Watts)	0.25 W
Power (Watts)	250 mW
Resistance	5.1 kOhms
Size / Dimension [diameter]	0.079 "
Size / Dimension [diameter]	2 mm
Size / Dimension [x]	3.5 mm
Size / Dimension [x]	0.138 "
Supplier Device Package	Axial
Temperature Coefficient	100 ppm/°C
Tolerance	1 %

LR0204 Series

Part	Tolerance	Resistance	Number of Terminations	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Power (Watts)	Power (Watts)	Composition
TE Connectivity Passive Product LR0204F91R	1 %	91 Ohms	2	Axial	155 °C	-55 °C	Axial	100 ppm/°C	3.5 mm	0.138 "	0.079 "	2 mm	0.25 W	250 mW	Metal Film
TE Connectivity Passive Product LR0204F5K1	1 %	5.1 kOhms	2	Axial	155 °C	-55 °C	Axial	100 ppm/°C	3.5 mm	0.138 "	0.079 "	2 mm	0.25 W	250 mW	Metal Film
TE Connectivity Passive Product LR0204F16K	1 %	16 kOhms	2	Axial	155 °C	-55 °C	Axial	100 ppm/°C	3.5 mm	0.138 "	0.079 "	2 mm	0.25 W	250 mW	Metal Film
TE Connectivity Passive Product LR0204F4K7	1 %	4.7 kOhms	2	Axial	155 °C	-55 °C	Axial	100 ppm/°C	3.5 mm	0.138 "	0.079 "	2 mm	0.25 W	250 mW	Metal Film
TE Connectivity Passive Product LR0204F110K	1 %	110 kOhms	2	Axial	155 °C	-55 °C	Axial	100 ppm/°C	3.5 mm	0.138 "	0.079 "	2 mm	0.25 W	250 mW	Metal Film
TE Connectivity Passive Product LR0204F8K2	1 %	8.2 kOhms	2	Axial	155 °C	-55 °C	Axial	100 ppm/°C	3.5 mm	0.138 "	0.079 "	2 mm	0.25 W	250 mW	Metal Film
TE Connectivity Passive Product LR0204F1K2	1 %	1.2 kOhms	2	Axial	155 °C	-55 °C	Axial	100 ppm/°C	3.5 mm	0.138 "	0.079 "	2 mm	0.25 W	250 mW	Metal Film
TE Connectivity Passive Product LR0204F100R	1 %	100 Ohms	2	Axial	155 °C	-55 °C	Axial	100 ppm/°C	3.5 mm	0.138 "	0.079 "	2 mm	0.25 W	250 mW	Metal Film
TE Connectivity Passive Product LR0204F20K	1 %	20 kOhms	2	Axial	155 °C	-55 °C	Axial	100 ppm/°C	3.5 mm	0.138 "	0.079 "	2 mm	0.25 W	250 mW	Metal Film
TE Connectivity Passive Product LR0204F1K0	1 %	1000 Ohms	2	Axial	155 °C	-55 °C	Axial	100 ppm/°C	3.5 mm	0.138 "	0.079 "	2 mm	0.25 W	250 mW	Metal Film

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Box (TB)	12000	$ 0.02

Description

General part information

LR0204 Series

5.1 kOhms ±1% 0.25W, 1/4W Through Hole Resistor Axial Metal Film

Documents

Technical documentation and resources
