2219C SL022

Active

ALPHA WIRE

MULTI-PAIR 18COND 22AWG

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 18COND 22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	2219C SL022

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	9.45 mm
Jacket (Insulation) Diameter [diameter]	0.372 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	18
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Control, Communication
Voltage	150 V
Wire Gauge	22 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Jacket (Insulation) Material	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Shield Material	Wire Gauge	Usage	Features	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Voltage	Cable Type	Shield Coverage
ALPHA WIRE 2219C SL022	-20 C	80 C	18	Poly-Vinyl Chloride (PVC)	Slate	7	30 AWG	Foil	Aluminum	22 AWG	Communication Control	Drain Wire	500 '	152.4 m	9.45 mm	0.372 in	Poly-Vinyl Chloride (PVC)	0.889 mm	0.035 in	Copper Tinned	150 V	Multi-Pair	100 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

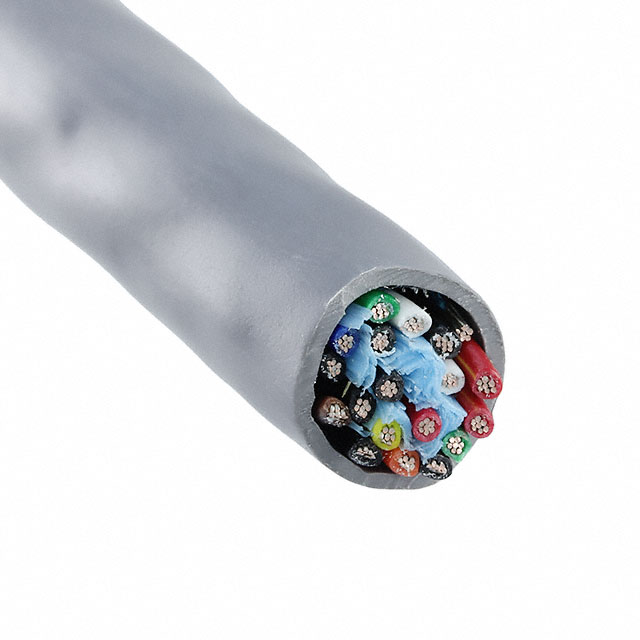

18 (9 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG Foil 500.0' (152.4m)
