TB2-2H-DC-1

Active

Switch Components

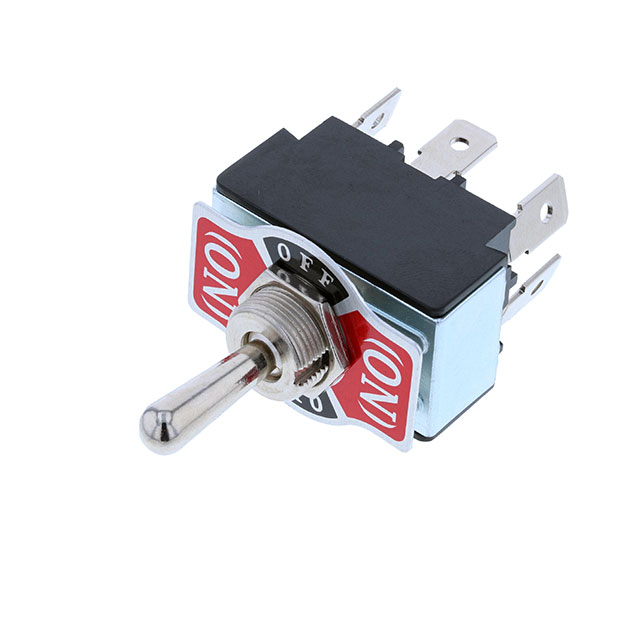

SWITCH: TOGGLE; POS: 3; DPDT; ON-OFF-(ON); 20A/12VDC; TB/TB2; 0÷55°C

Search across all available documentation for this part.

Active

Switch Components

SWITCH: TOGGLE; POS: 3; DPDT; ON-OFF-(ON); 20A/12VDC; TB/TB2; 0÷55°C

Technical Specifications

Parameters and characteristics for this part

Specification	TB2-2H-DC-1

Actuator Length [x]	18.4 mm
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	0.75
Circuit	DPDT
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V

Part	Current Rating (Amps)	Termination Style	Illumination	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Actuator Type	Electrical Life	Circuit	Switch Function	Actuator Length [x]	Bushing Thread	Bushing Thread
Switch Components TB2-2F-DC-4	20 A	Screw Terminal	Non-Illuminated	12.2 mm	12 V	Standard Round	6000 Cycles	DPDT	On-Off-On	18.4 mm	M12	0.75
Switch Components TB2-2H-DC-1	20 A	Quick Connect - 0.250" (6.3mm)	Non-Illuminated	12.2 mm	12 V	Standard Round	6000 Cycles	DPDT	On-Off-Mom	18.4 mm	M12	0.75
Switch Components TB2-2F-DC-1	20 A	Quick Connect - 0.250" (6.3mm)	Non-Illuminated	12.2 mm	12 V	Standard Round	6000 Cycles	DPDT	On-Off-On	18.4 mm	M12	0.75
