UCLAMP0554T.TNT

Active

Semtech Corporation

TRANS VOLTAGE SUPPRESSOR DIODE, 25W, 5V V(RWM), BIDIRECTIONAL, 5 ELEMENT, SILICON, SLP0808P4T, 4 PIN

Search across all available documentation for this part.

Active

Semtech Corporation

TRANS VOLTAGE SUPPRESSOR DIODE, 25W, 5V V(RWM), BIDIRECTIONAL, 5 ELEMENT, SILICON, SLP0808P4T, 4 PIN

Technical Specifications

Parameters and characteristics for this part

Specification	UCLAMP0554T.TNT

Applications	General Purpose
Capacitance @ Frequency	4.5 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C

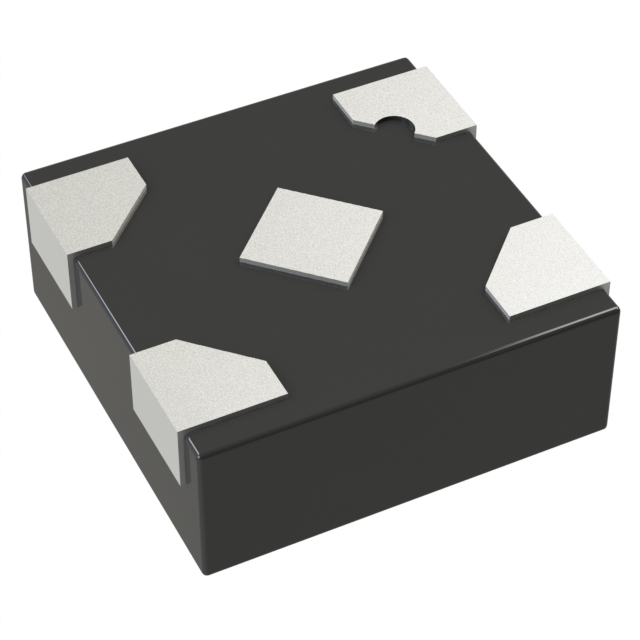

Package / Case	4-XFDFN Exposed Pad
Power - Peak Pulse	25 W
Power Line Protection	False
Supplier Device Package	SLP0808P4T
Type	Zener
Unidirectional Channels [custom]	4
Voltage - Breakdown (Min) [Min]	6 V
Voltage - Clamping (Max) @ Ipp [Max]	12.5 V
Voltage - Reverse Standoff (Typ)	5 V

Part	Voltage - Clamping (Max) @ Ipp [Max]	Unidirectional Channels [custom]	Voltage - Breakdown (Min) [Min]	Power - Peak Pulse	Voltage - Reverse Standoff (Typ)	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance @ Frequency	Mounting Type	Type	Applications	Supplier Device Package	Power Line Protection
Semtech Corporation UCLAMP0554T.TNT	12.5 V	4	6 V	25 W	5 V	4-XFDFN Exposed Pad	125 ¯C	-55 °C	4.5 pF	Surface Mount	Zener	General Purpose	SLP0808P4T

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12.5V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount SLP0808P4T
