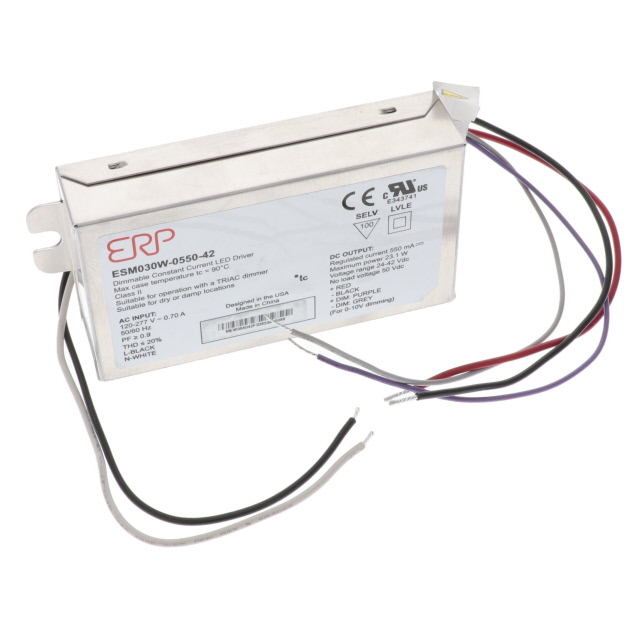

ESM030W-0550-42

Active

ERP Power, LLC

LED DRIVER CC AC/DC 28-42V 550MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ESM030W-0550-42

Active

ERP Power, LLC

LED DRIVER CC AC/DC 28-42V 550MA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESM030W-0550-42

Approval Agency	CB, cUL, FC, UL, CE, cRUcs
Current - Output (Max) [Max]	550 mA
Dimming	ELV, TRIAC
Efficiency	87 %
Features	OTP, SCP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Power (Watts)	23 W
Ratings	NEMA 410, IP20
Size / Dimension [x]	106.7 mm, 4.2 in
Size / Dimension [y]	60.3 mm, 2.37 in
Size / Dimension [z]	0.99 in, 25.2 mm
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max) [Max]	277 VAC
Voltage - Input (Min) [Min]	120 VAC
Voltage - Output [Max]	42 V
Voltage - Output [Min]	28 V
Weight	252 g
Weight	0.556 lb

ESM030W Series

Part	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output [Min]	Voltage - Output [Max]	Mounting Type	Features	Voltage - Input (Max) [Max]	Termination Style	Number of Outputs	Dimming	Type	Operating Temperature	Efficiency	Voltage - Input (Min) [Min]	Topology	Ratings	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Weight	Weight
ERP Power, LLC ESM030W-0700-42-Z1	29 W	106.4 mm	25.1 mm	60.2 mm	4.19 "	2.37 in	0.99 "	24 V	42 V	Chassis Mount	OCP OTP SCP	277 VAC	Wire Leads	1	Analog ELV TRIAC	Constant Current	194 °F	87 %	120 VAC	AC DC Converter	IP20	700 mA
ERP Power, LLC ESM030W-0900-26	23 W	4.2 in 106.7 mm	0.99 in 25.2 mm	2.37 in 60.3 mm				19 V	26 V	Chassis Mount	OCP OTP SCP	277 VAC	Wire Leads	1	ELV TRIAC	Constant Current		87 %	120 VAC	AC DC Converter	IP20 NEMA 410	900 mA	-30 ░C	90 °C	CB CE cRUcs cUL FC UL	252 g	0.556 lb
ERP Power, LLC ESM030W-0700-42	29 W	4.2 in 106.7 mm	0.99 in 25.2 mm	2.37 in 60.3 mm				28 V	42 V	Chassis Mount	OCP OTP SCP	277 VAC	Wire Leads	1	ELV TRIAC	Constant Current		87 %	120 VAC	AC DC Converter	IP20 NEMA 410	700 mA	-30 ░C	90 °C	CB CE cRUcs cUL FC UL	252 g	0.556 lb
ERP Power, LLC ESM030W-0500-42	21 W	4.2 in 106.7 mm	0.99 in 25.2 mm	2.37 in 60.3 mm				28 V	42 V	Chassis Mount	OCP OTP SCP	277 VAC	Wire Leads	1	ELV TRIAC	Constant Current		87 %	120 VAC	AC DC Converter	IP20 NEMA 410	500 mA	-30 ░C	90 °C	CB CE cRUcs cUL FC UL	252 g	0.556 lb
ERP Power, LLC ESM030W-0550-42	23 W	4.2 in 106.7 mm	0.99 in 25.2 mm	2.37 in 60.3 mm				28 V	42 V	Chassis Mount	OCP OTP SCP	277 VAC	Wire Leads	1	ELV TRIAC	Constant Current		87 %	120 VAC	AC DC Converter	IP20 NEMA 410	550 mA	-30 ░C	90 °C	CB CE cRUcs cUL FC UL	252 g	0.556 lb
ERP Power, LLC ESM030W-1750-14	13 W	4.2 in 106.7 mm	0.99 in 25.2 mm	2.37 in 60.3 mm				8 V	14 V	Chassis Mount	OCP OTP SCP	277 VAC	Wire Leads	1	ELV TRIAC	Constant Current		87 %	120 VAC	AC DC Converter	IP20 IP64 NEMA 410	1.75 A	-30 ░C	90 °C	CB CE cRUcs cUL FC UL	252 g	0.556 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 30.55
		5	$ 28.94
		10	$ 27.34
		25	$ 26.13
		50	$ 24.92
		100	$ 24.12
		250	$ 22.11

Description

General part information

ESM030W Series

550mA 28 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output
