RTT8702X

Active

Switchcraft Inc.

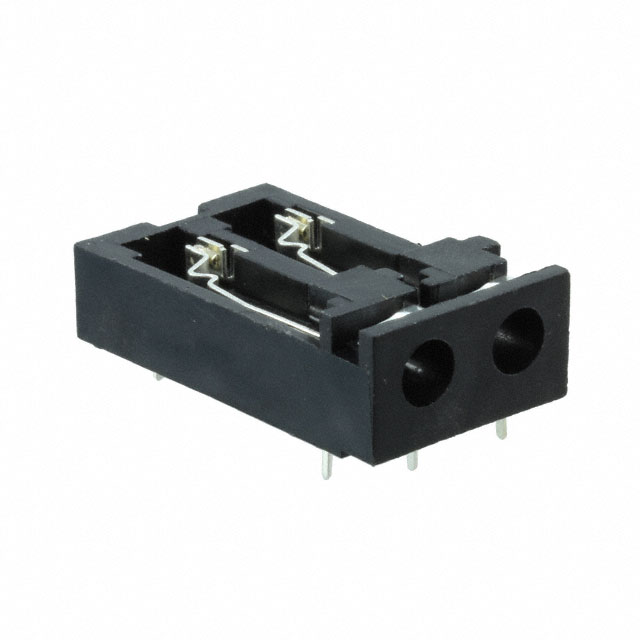

CONN MINIATURE PHONE JACK F SOLDER RA THRU-HOLE 2 PORT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN MINIATURE PHONE JACK F SOLDER RA THRU-HOLE 2 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	RTT8702X

Actual Diameter [diameter]	0.177 in
Actual Diameter [diameter]	4.48 mm
Body Color	Black
Connector Type	Twin, Phone Jack
Contact Material	Copper Alloy
Contact Material - Plating [custom]	Gold
Gender	Female
Housing Material	Thermoplastic
Industry Recognized Mating Diameter [diameter]	0.173 in
Industry Recognized Mating Diameter [diameter]	4.39 mm
Insulation Color	Black
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder

Part	Contact Material	Signal Lines	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material - Plating [custom]	Shielding	Termination	Insulation Color	Mounting Type	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Body Color	Connector Type	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Actual Diameter [diameter]	Actual Diameter [diameter]	Housing Material
Switchcraft Inc. RTT8702X	Copper Alloy	Stereo	Female	85 °C	-55 °C	Gold	Unshielded	Solder	Black	Through Hole Right Angle	3	2	10	Black	Phone Jack Twin	0.173 in	4.39 mm	0.177 in	4.48 mm	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4.39mm (0.173") Phone Jack, Twin Stereo (3 Conductor, TRS) Connector Solder
