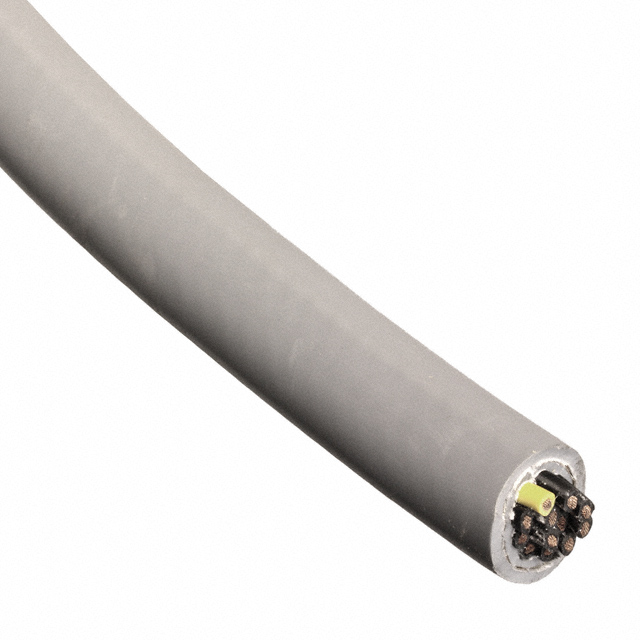

1072 SL002

Active

ALPHA WIRE

CABLE 12COND 16AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 12COND 16AWG SLATE

Technical Specifications

Parameters and characteristics for this part

Specification	1072 SL002

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0117 in
Jacket (Insulation) Diameter [diameter]	0.64 "
Jacket (Insulation) Diameter [diameter]	16.26 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.6 mm
Jacket (Insulation) Thickness	0.063 in
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	600 V
Wire Gauge	16 AWG

Part	Wire Gauge	Number of Conductors	Jacket (Insulation) Material	Conductor Insulation	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Conductor Material	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage
ALPHA WIRE 1072 SL005	16 AWG	12	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	1.6 mm	0.063 in	-20 C	80 C	Communication Control	Copper Tinned	Slate	19	0.0117 in	Multi-Conductor	0.64 "	16.26 mm	600 V
ALPHA WIRE 1072 SL002	16 AWG	12	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	152.4 m	500 '	1.6 mm	0.063 in	-20 C	80 C	Communication Control	Copper Tinned	Slate	19	0.0117 in	Multi-Conductor	0.64 "	16.26 mm	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 7.98

General part information

12 Conductor Multi-Conductor Cable Slate 16 AWG 500.0' (152.4m)
