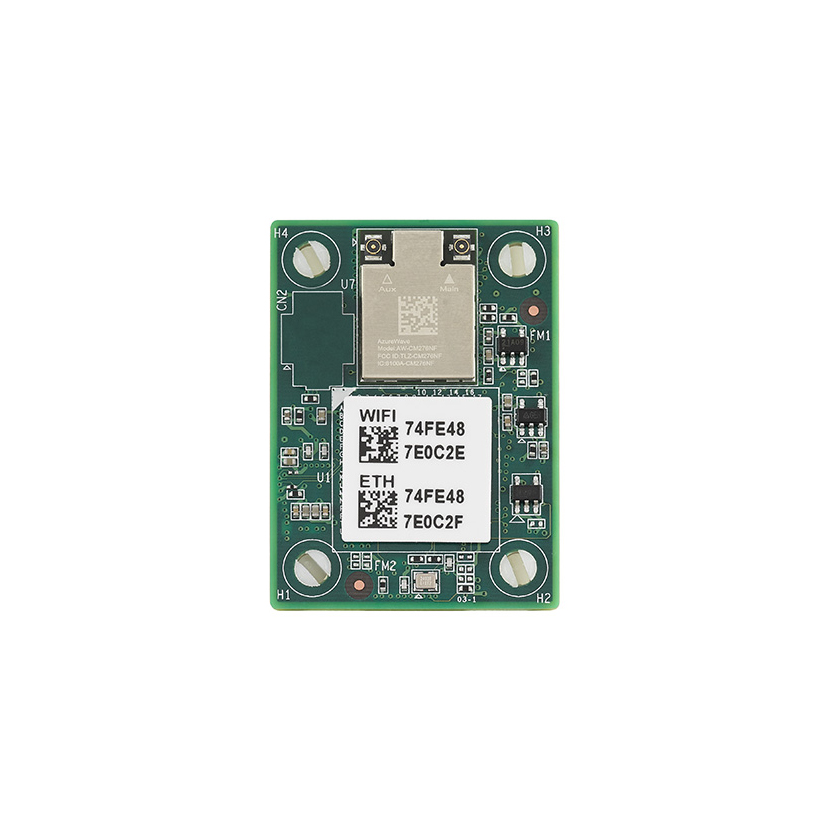

BB-WLNNA-AN-DP551

Active

Advantech Corp

RF TXRX MODULE WIFI U.FL SMD

Search across all available documentation for this part.

Active

Advantech Corp

RF TXRX MODULE WIFI U.FL SMD

Technical Specifications

Parameters and characteristics for this part

Specification	BB-WLNNA-AN-DP551

Antenna Type	Antenna Not Included, I-PEX MHF4
Data Rate	300 Mbps
Frequency [Max]	5.725 GHz, 2.483 GHz, 5.825 GHz
Frequency [Min]	5.745 GHz, 5.15 GHz, 2.412 GHz
Memory Size	32 MB
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Package / Case	Module
Power - Output	17 dBm
Protocol	802.11a/b/g/n
RF Family/Standard	WiFi
Sensitivity	-88 dBm
Serial Interfaces	Ethernet, GPIO, UART
Voltage - Supply	3.3 V

Part	Memory Size	Operating Temperature [Min]	Operating Temperature [Max]	Power - Output	Protocol	Frequency [Max]	Frequency [Min]	Sensitivity	Voltage - Supply	RF Family/Standard	Data Rate	Package / Case	Antenna Type	Mounting Type	Serial Interfaces
Advantech Corp BB-WLNNA-AN-DP551	32 MB	-30 ░C	85 °C	17 dBm	802.11a/b/g/n	2.483 GHz 5.725 GHz 5.825 GHz	2.412 GHz 5.15 GHz 5.745 GHz	-88 dBm	3.3 V	WiFi	300 Mbps	Module	Antenna Not Included I-PEX MHF4	Through Hole	Ethernet GPIO UART
Advantech Corp BB-WLNNA-SE-DP551	32 MB	-30 ░C	85 °C	17 dBm	802.11a/b/g/n	2.483 GHz 5.725 GHz 5.825 GHz	2.412 GHz 5.15 GHz 5.745 GHz	-88 dBm	3.3 V	WiFi	300 Mbps	Module	Antenna Not Included I-PEX MHF4	Through Hole	Ethernet GPIO UART

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 120.00

General part information

WiFi 802.11a/b/g/n Transceiver Module 2.412GHz ~ 2.483GHz, 5.15GHz ~ 5.725GHz, 5.745GHz ~ 5.825GHz Antenna Not Included, I-PEX MHF4 Through Hole
