2905289

Active

Phoenix Contact

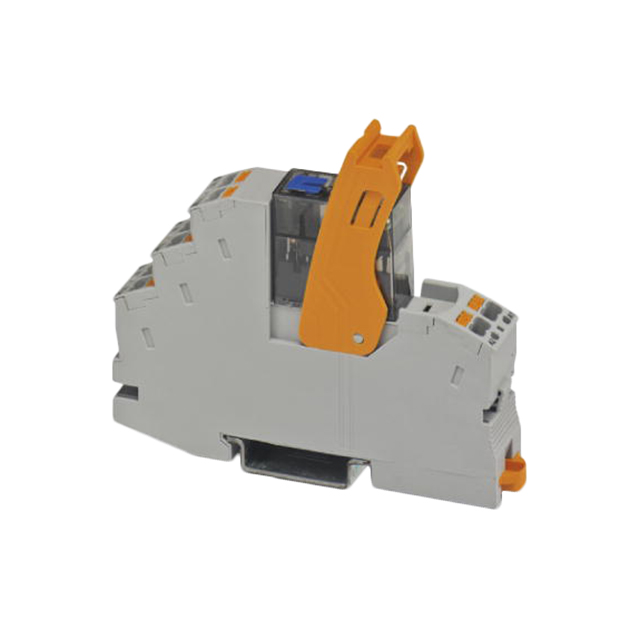

RELAY GEN PURPOSE SPDT 10A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 10A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	2905289

Approval Agency	CSA
Coil Current	18 mA
Coil Resistance	1.33 kOhms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	10 A
Features	Socket Included, Diode, Lighted Indicator
Mounting Type	DIN Rail
Operate Time	9 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Spring Terminal

Part	Switching Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Approval Agency	Relay Type	Mounting Type	Contact Rating (Current)	Release Time	Coil Current	Features	Termination Style	Contact Material	Operate Time	Coil Resistance	Contact Form	Coil Voltage
Phoenix Contact 2905292	250 VAC 250 VDC	45 °C	-40 °C	Non Latching	CSA	General Purpose	DIN Rail	8.5 A	20 ms	3.5 mA	Lighted Indicator Socket Included Varistor	Spring Terminal	Silver Nickel (AgNi)	10 ms	65.71 kOhms	DPDT (2 Form C)	230 VAC
Phoenix Contact 2905290	250 VAC 250 VDC	50 °C	-40 °C	Non Latching	CSA	General Purpose	DIN Rail	10 A	20 ms	3.5 mA	Lighted Indicator Socket Included Varistor	Spring Terminal	Silver Nickel (AgNi)	10 ms	65.71 kOhms	SPDT (1 Form C)	230 VAC
Phoenix Contact 2905289	250 VAC 250 VDC	60 °C	-40 °C	Non Latching	CSA	General Purpose	DIN Rail	10 A	10 ms	18 mA	Diode Lighted Indicator Socket Included	Spring Terminal	Silver Nickel (AgNi)	9 ms	1.33 kOhms	SPDT (1 Form C)	24 VDC
Phoenix Contact 2905291	250 VAC 250 VDC	60 °C	-40 °C	Non Latching	CSA	General Purpose	DIN Rail	8.5 A	10 ms	18 mA	Diode Lighted Indicator Socket Included	Spring Terminal	Silver Nickel (AgNi)	9 ms	1.33 kOhms	DPDT (2 Form C)	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 24VDC Coil DIN Rail
