0022651150

Active

Molex

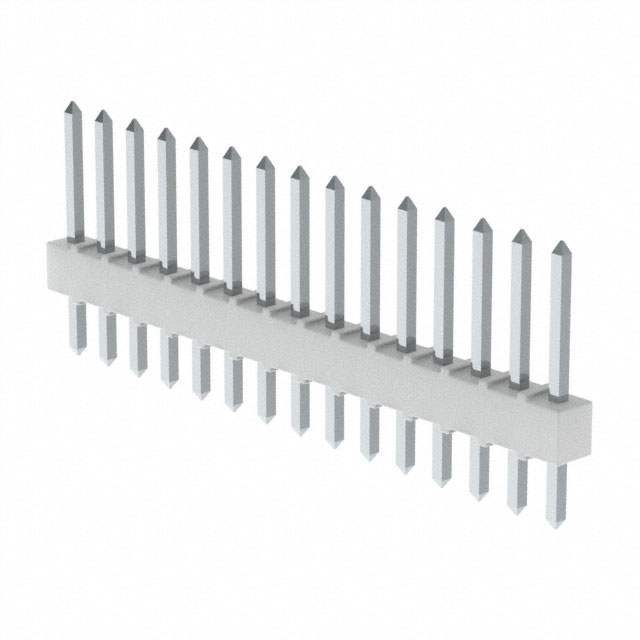

CONN HEADER VERT 15POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0022651150

Active

Molex

CONN HEADER VERT 15POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0022651150

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	60 Áin
Contact Finish Thickness - Mating	1.52 Ám
Contact Finish Thickness - Post	60 µin
Contact Finish Thickness - Post	1.52 µm
Contact Length - Mating	0.228 in
Contact Length - Mating	5.8 mm
Contact Length - Post	2.84 mm
Contact Length - Post	0.112 in
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	White
Insulation Height	0.13 in
Insulation Height	3.3 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	11.94 mm
Overall Contact Length	0.47 "
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

002265 Series

Part	Material Flammability Rating	Contact Material	Fastening Type	Insulation Height	Insulation Height	Contact Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Number of Rows	Applications	Contact Shape	Voltage Rating	Mounting Type	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Number of Positions Loaded	Insulation Material	Contact Finish - Post	Insulation Color	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Shrouding
Molex 0022653151	UL94 V-0	Phosphor Bronze	Push-Pull	0.185 in	4.7 mm	Non-Gendered	Board Hooks	-40 °C	105 ░C	0.1 in	2.54 mm	Solder	150 Áin	3.81 Ám	Receptacle	1	Automotive General Purpose Medical Telecommunications	Square	250 VAC	Board Edge Right Angle Through Hole	Board to Board Cable	150 Áin	3.81 Ám	15	All	Nylon Polyamide (PA)	Tin	White	4 A
Molex 0022653080	UL94 V-0	Brass	Push-Pull	0.311 in	7.9 mm	Non-Gendered	Board Hooks	-40 °C	80 C	0.1 in	2.54 mm	Solder	100 çin	2.54 çm	Receptacle	1	Automotive General Purpose Medical Telecommunications	Square	250 VAC	Through Hole	Board to Board Cable	100 µin	2.54 µm	8	All	Nylon Polyamide (PA)	Tin	White	2.5 A	3.35 mm	0.132 in
Molex 0022651150	UL94 V-0		Push-Pull	0.13 in	3.3 mm	Male Pin				0.1 in	2.54 mm	Solder	60 Áin	1.52 Ám	Header	1	Automotive General Purpose Medical Telecommunications	Square		Through Hole	Board to Board Cable	60 µin	1.52 µm	15	All	Nylon Polyamide (PA)	Tin	White		2.84 mm	0.112 in	0.228 in	5.8 mm	11.94 mm	0.47 "	Unshrouded
Molex 0022653040	UL94 V-0	Brass	Push-Pull	0.311 in	7.9 mm	Non-Gendered	Board Hooks	-40 °C	80 C	0.1 in	2.54 mm	Solder	100 çin	2.54 çm	Receptacle	1	Automotive General Purpose Medical Telecommunications	Square	250 VAC	Through Hole	Board to Board Cable	100 µin	2.54 µm	4	All	Nylon Polyamide (PA)	Tin	White	2.5 A	3.35 mm	0.132 in
Molex 0022653041	UL94 V-0	Phosphor Bronze	Push-Pull	0.185 in	4.7 mm	Non-Gendered	Board Hooks	-40 °C	105 ░C	0.1 in	2.54 mm	Solder	150 Áin	3.81 Ám	Receptacle	1	Automotive General Purpose Medical Telecommunications	Square	250 VAC	Board Edge Right Angle Through Hole	Board to Board Cable	150 Áin	3.81 Ám	4	All	Nylon Polyamide (PA)	Tin	White	4 A
Molex 0022653071	UL94 V-0	Phosphor Bronze	Push-Pull	0.185 in	4.7 mm	Non-Gendered	Board Hooks	-40 °C	105 ░C	0.1 in	2.54 mm	Solder	150 Áin	3.81 Ám	Receptacle	1	Automotive General Purpose Medical Telecommunications	Square	250 VAC	Board Edge Right Angle Through Hole	Board to Board Cable	150 Áin	3.81 Ám	7	All	Nylon Polyamide (PA)	Tin	White	4 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 1.21

Description

General part information

002265 Series

Connector Header Through Hole 15 position 0.100" (2.54mm)
