2834494

Obsolete

Phoenix Contact

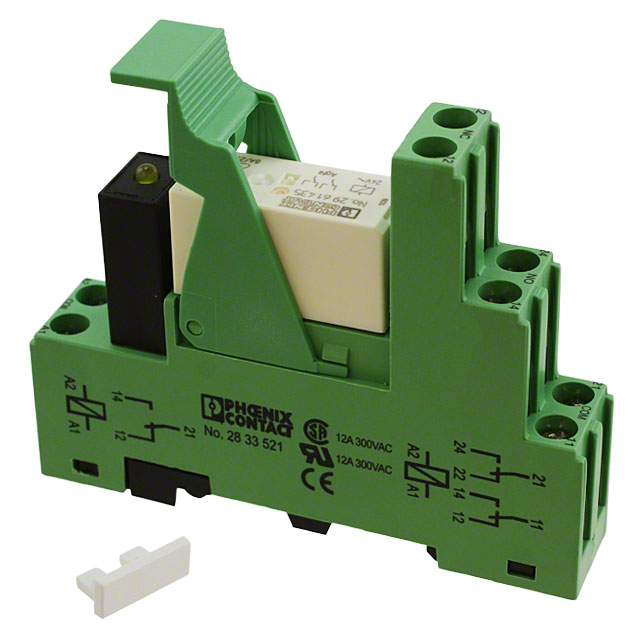

RELAY GEN PURPOSE DPDT 8A 24V

Search across all available documentation for this part.

Obsolete

Phoenix Contact

RELAY GEN PURPOSE DPDT 8A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	2834494

Coil Current	26 mA
Coil Resistance	923 Ohms
Coil Type	Non Latching
Coil Voltage	24 VAC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	8 A
Features	Lighted Indicator, Varistor, Socket Included
Mounting Type	DIN Rail
Operate Time	12 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Release Time	14 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Screw Terminal

Part	Switching Voltage	Features	Coil Type	Mounting Type	Coil Current	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Release Time	Contact Rating (Current)	Operate Time	Relay Type	Coil Resistance	Termination Style	Contact Form	Contact Material
Phoenix Contact 2834478	30 VAC 36 VDC	Socket Included Varistor	Non Latching	DIN Rail	5.5 mA	230 VAC	-25 °C	60 °C	22 ms	10 A	12 ms	General Purpose	41.8 kOhms	Spring Terminal	SPDT (1 Form C)	Gold (Au) Silver Nickel (AgNi)
Phoenix Contact 2834423	250 VAC 250 VDC	Lighted Indicator Socket Included Varistor	Non Latching	DIN Rail	7 mA	120 VAC	-25 °C	60 °C	16 ms	10 A	12 ms	General Purpose	17.1 kOhms	Spring Terminal	SPDT (1 Form C)	Silver Nickel (AgNi)
Phoenix Contact 2834436	250 VAC 250 VDC	Lighted Indicator Varistor	Non Latching	DIN Rail	5.5 mA	230 VAC	-25 °C	60 °C	22 ms	10 A	12 ms	General Purpose	41.82 kOhms	Spring Terminal	SPDT (1 Form C)	Silver Nickel (AgNi)
Phoenix Contact 2834494	250 VAC 250 VDC	Lighted Indicator Socket Included Varistor	Non Latching	DIN Rail	26 mA	24 VAC	-25 °C	60 °C	14 ms	8 A	12 ms	General Purpose	923 Ohms	Screw Terminal	DPDT (2 Form C)	Silver Nickel (AgNi)
Phoenix Contact 2834465	250 VAC 250 VDC	Lighted Indicator Varistor	Non Latching	DIN Rail	7 mA	120 VAC	-25 °C	60 °C	16 ms	10 A	12 ms	General Purpose	17.14 kOhms	Spring Terminal	SPDT (1 Form C)	Gold (Au) Silver Nickel (AgNi)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay DPDT (2 Form C) 24VAC Coil DIN Rail
