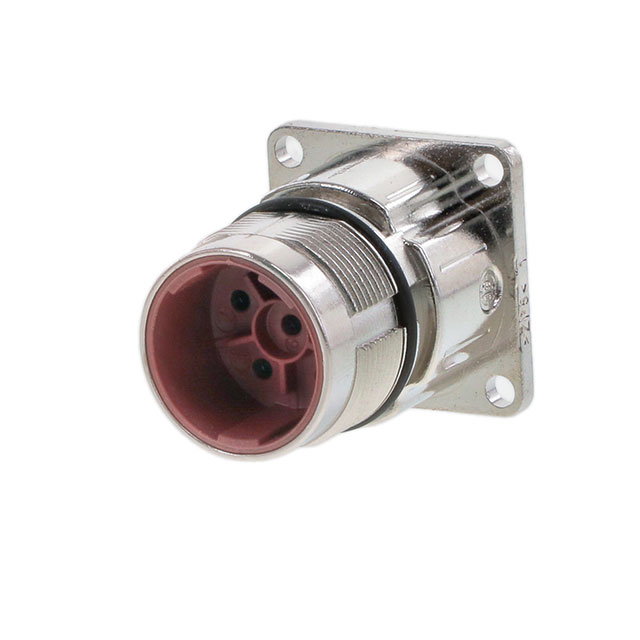

BEGA116NN00000201000

Active

TE Intercontec

CONN RCPT HSG MALE 6POS PNL MNT

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE 6POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	BEGA116NN00000201000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Housing Color	Silver
Includes	1 Connector, 1 O-Ring
Ingress Protection	IP66/IP67
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	6
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-6
Shielding	Unshielded
Type	For Male Pins

Part	Orientation	Note	Includes	Shell Size - Insert	Contact Shape	Mounting Feature	Shell Material	Housing Color	Fastening Type	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Type	Ingress Protection	Shielding	Number of Positions	Connector Type	Material Flammability Rating	Insert Material
TE Intercontec BEGA116NN00000201000	Keyed	Contacts Not Included	1 Connector 1 O-Ring	M23-6	Circular	Flange	Zinc Die Cast	Silver	Push-Twist	Nickel	-20 C	130 °C	For Male Pins	IP66/IP67	Unshielded	6	Receptacle Housing	UL94 V-0	Polyamide (PA66) Nylon 6/6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 (5 Power + PE) Position Circular Connector Receptacle Housing Panel Mount
