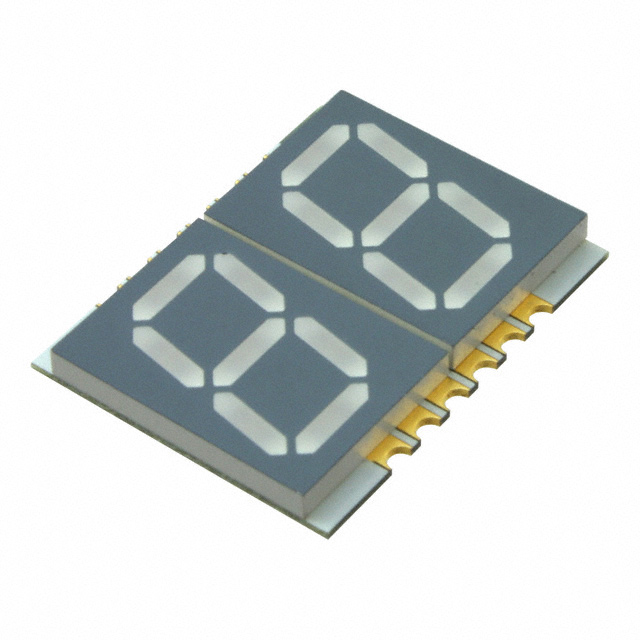

ACDA56-51SYKWA

Active

Kingbright

LED DISPLAYS & ACCESSORIES 0.56" DUAL DIGIT YEL SMD LED DISPLAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

ACDA56-51SYKWA

Active

Kingbright

LED DISPLAYS & ACCESSORIES 0.56" DUAL DIGIT YEL SMD LED DISPLAY

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ACDA56-51SYKWA

Color	Yellow
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	117 mcd
Number of Characters	2
Package / Case	12-SMD, No Lead
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	17 mm
Size / Dimension [x]	0.669 "
Size / Dimension [y]	0.996 in
Size / Dimension [y]	25.3 mm
Size / Dimension [z]	2.4 mm
Size / Dimension [z]	0.094 "
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	590 nm

ACDA56 Series

Part	Wavelength - Peak	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Number of Characters	Digit/Alpha Size	Digit/Alpha Size	Package / Case	Color	Common Pin	Power Dissipation (Max) [Max]	Current - Test	Voltage - Forward (Vf) (Typ)	Display Type	Millicandela Rating
Kingbright ACDA56-41SRWA-F01	660 nm	0.669 "	0.988 "	25.1 mm	3.75 mm	0.148 in	17 mm	2	0.56 in	14.22 mm	20-SMD No Lead	Red	Common Anode	75 mw	20 mA	1.85 V	7-Segment
Kingbright ACDA56-41SGWA-F01	565 nm	0.669 "	0.988 "	25.1 mm	3.75 mm	0.148 in	17 mm	2	0.56 in	14.22 mm	20-SMD No Lead	Green	Common Anode	62.5 mW	20 mA	2.2 V	7-Segment	6 mcd
Kingbright ACDA56-51SYKWA	590 nm	0.669 "	0.996 in	25.3 mm	2.4 mm	0.094 "	17 mm	2	0.56 in	14.22 mm	12-SMD No Lead	Yellow	Common Anode	75 mw	20 mA	2 V	7-Segment	117 mcd
Kingbright ACDA56-41EWA-F01	627 nm	0.148 "	0.988 "	25.1 mm	19 mm	0.748 "	3.75 mm	2	0.56 in	14.22 mm	20-SMD No Lead	Red	Common Anode	75 mw	10 mA	2.5 V	7-Segment	5.4 mcd
Kingbright ACDA56-51CGKWA		0.669 "	0.996 in	25.3 mm	2.4 mm	0.094 "	17 mm	2	0.56 in	14.22 mm	12-SMD No Lead	Green	Common Anode	75 mw	20 mA	2.1 V	7-Segment
Kingbright ACDA56-41SYKWA-F01	590 nm	0.669 "	0.988 "	25.1 mm	3.75 mm	0.148 in	17 mm	2	0.56 in	14.22 mm	20-SMD No Lead	Yellow	Common Anode	75 mw	20 mA	2 V	7-Segment	76 mcd

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ACDA56 Series

Display Modules - LED Character and Numeric Yellow 7-Segment 2 Character Common Anode 2V 20mA 0.669" H x 0.996" W x 0.094" D (17.00mm x 25.30mm x 2.40mm) 12-SMD, No Lead
