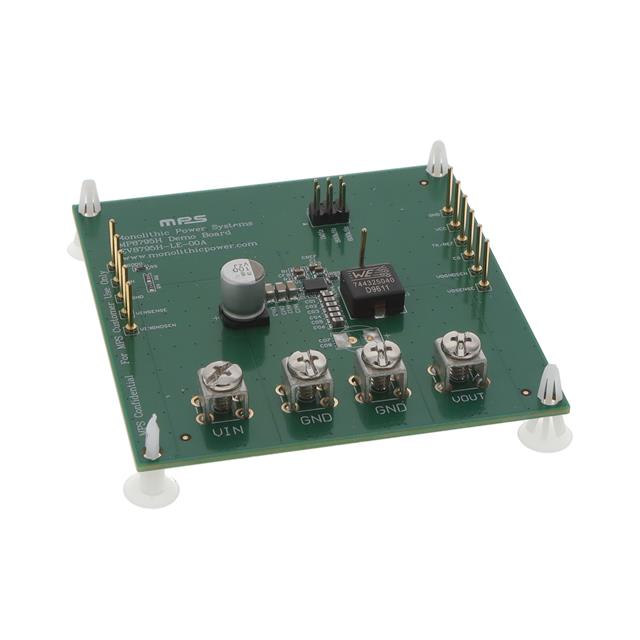

EV8795H-LE-00A

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MP8795H

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MP8795H

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Voltage - Output (Max) [Max]	Voltage - Input (Max) [Max]	Topology	Operating Temperature [Min]	Operating Temperature [Max]	Synchronous Rectifier	Output Configuration	Output Type	Number of Outputs	Function	Voltage - Input (Min) [Min]	Frequency - Switching	Mounting Type	Current - Output	Voltage - Output (Min/Fixed)	Supplied Contents	Voltage - Input [Max]	Voltage - Input [Min]	Regulator Topology	Voltage - Output	Utilized IC / Part	Board Type	Outputs and Type	Outputs and Type	Main Purpose
MONOLITHIC POWER SYSTEMS (MPS) MP8795GLE-P	21-QFN (3x4)	5.5 V	16 V	Buck	-40 °C	125 ¯C		Positive	Adjustable	1	Step-Down	4 V	1 MHz 600 kHz 800 kHz	Surface Mount	15 A	0.6 V
MONOLITHIC POWER SYSTEMS (MPS) EV8795H-LE-00A															20 A		Board(s)	16 V	8 V	Buck	1 V	MP8795H	Fully Populated	Non-Isolated	1	DC/DC Step Down

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 25.00

General part information

MP8795H - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
