LK5BNB126N3
ActiveAPEM

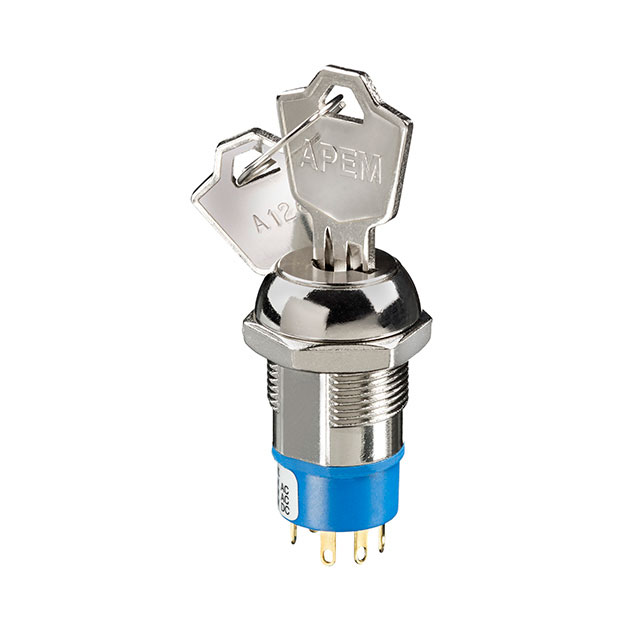

SWITCH KEYLOCK 2POS DPDT 4A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LK5BNB126N3
ActiveAPEM
SWITCH KEYLOCK 2POS DPDT 4A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LK5BNB126N3 |
|---|---|
| Actuator Type | Flat Key |
| Angle of Throw | 45 ° |
| Circuit | DPDT |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Timing | Not Specified |
| Current Rating (Amps) | 4 A |
| Depth Behind Flange | 32.55 mm |
| Electrical Life | 6000 Cycles |
| Key Removable Positions | 1 only |
| Mechanical Life | 6000 Cycles |
| Number of Positions | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 19 mm |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 23.51 | |
| 10 | $ 20.29 | |||
| 25 | $ 19.13 | |||
| 40 | $ 18.56 | |||
| 80 | $ 17.75 | |||
| 230 | $ 16.58 | |||
| 440 | $ 15.89 | |||
Description
General part information
LK5 Series
Keylock Switch 2 Position DPDT 4A (AC/DC) 125 VAC 28 VDC Panel Mount
