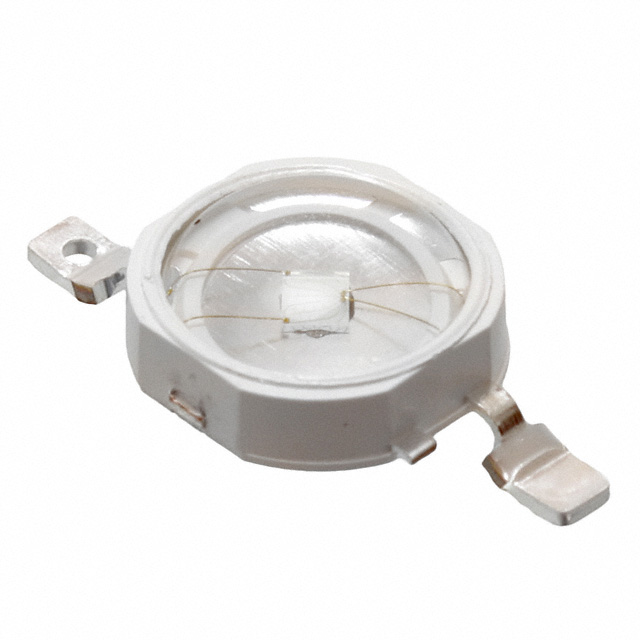

ASMT-AB31-NMP00

LTB

Broadcom Limited

LED BLUE 460NM 2SMD

Search across all available documentation for this part.

LTB

Broadcom Limited

LED BLUE 460NM 2SMD

Technical Specifications

Parameters and characteristics for this part

Specification	ASMT-AB31-NMP00

Color	Blue
Current - Max [Max]	700 mA
Current - Test	350 mA
Height - Seated (Max)	4.2 mm
Height - Seated (Max) [Max]	0.165 in
Lumens/Watt @ Current - Test	16 lm/W
Luminous Flux @ Current/Temperature	18 lm
Mounting Type	Surface Mount
Package / Case	2-SMD, Gull Wing Exposed Pad
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Supplier Device Package	2-SMD
Thermal Resistance of Package [diameter]	10 °C/W
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ)	3.2 V
Wavelength	460 nm

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Forward (Vf) (Typ)	Viewing Angle	Mounting Type	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max)	Luminous Flux @ Current/Temperature	Supplier Device Package	Wavelength	Color	Current - Test	Current - Max [Max]	Lumens/Watt @ Current - Test	Thermal Resistance of Package [diameter]
Broadcom Limited ASMT-AB31-NNP01	0.315 "	8 mm	3.2 V	140 °	Surface Mount	2-SMD Gull Wing Exposed Pad	0.165 in	4.2 mm	23 lm	2-SMD	460 nm	Blue	350 mA	700 mA	21 lm/W
Broadcom Limited ASMT-AB31-NNP00	0.315 "	8 mm	3.2 V	140 °	Surface Mount	2-SMD Gull Wing Exposed Pad	0.165 in	4.2 mm	23 lm	2-SMD	460 nm	Blue	350 mA	700 mA	21 lm/W	10 °C/W
Broadcom Limited ASMT-AB31-NMP00	0.315 "	8 mm	3.2 V	140 °	Surface Mount	2-SMD Gull Wing Exposed Pad	0.165 in	4.2 mm	18 lm	2-SMD	460 nm	Blue	350 mA	700 mA	16 lm/W	10 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color - Blue 460nm (Typ) 2-SMD, Gull Wing Exposed Pad
