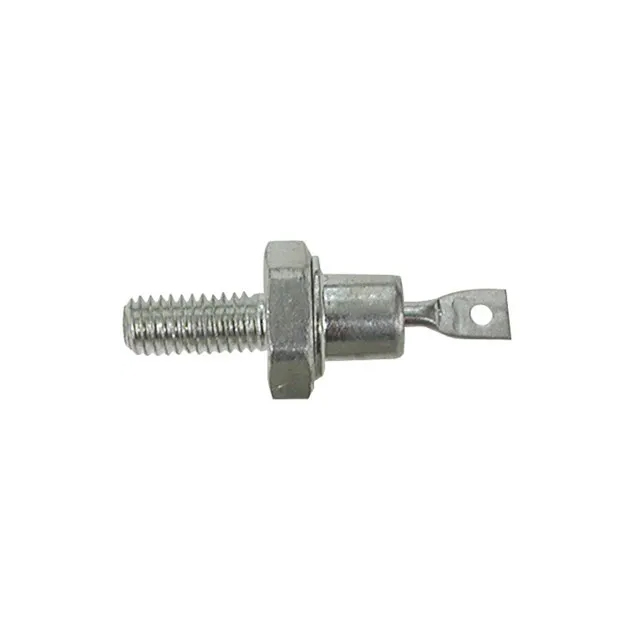

1N3317RB
ActiveSolid State Inc.
DIODE ZENER 18V 50W DO5
Deep-Dive with AI
Search across all available documentation for this part.
1N3317RB
ActiveSolid State Inc.
DIODE ZENER 18V 50W DO5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1N3317RB |
|---|---|
| Current - Reverse Leakage @ Vr | 5 µA |
| Impedance (Max) (Zzt) [Max] | 2 Ohms |
| Mounting Type | Stud Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -65 °C |
| Package / Case | DO-203AB, DO-5, Stud |
| Power - Max [Max] | 50 W |
| Supplier Device Package | DO-5 |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V |
| Voltage - Zener (Nom) (Vz) | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 42.79 | |
Description
General part information
1N3317 Series
Zener Diode 18 V 50 W ±5% Stud Mount DO-5
Documents
Technical documentation and resources
No documents available
